RouteHeatVapor Class Reference

#include <RouteHeatVapor.h>

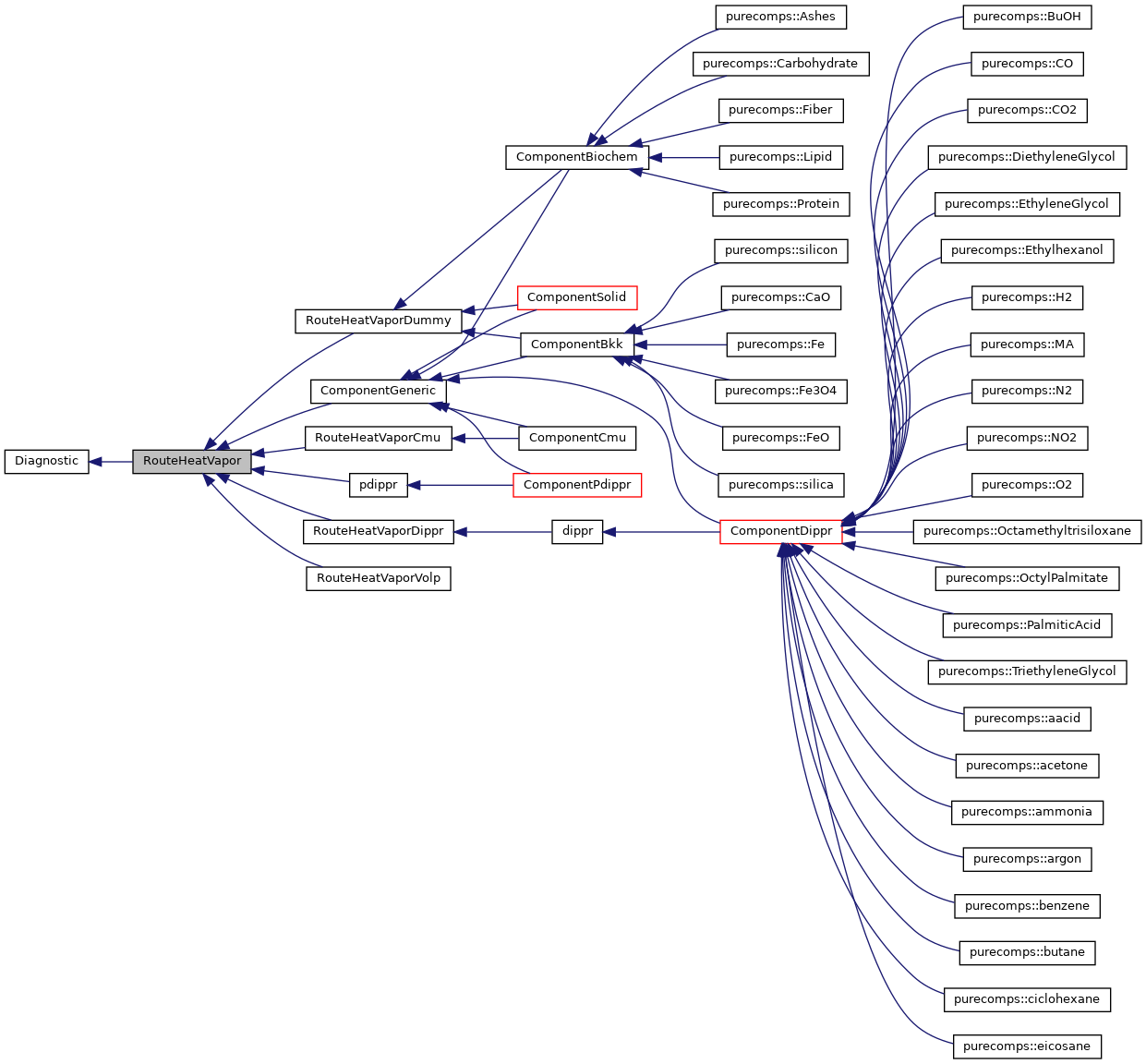

Inheritance diagram for RouteHeatVapor:

Public Member Functions
	RouteHeatVapor (void)
virtual	~RouteHeatVapor (void)
virtual Value	hv (const Value &T, const Value &P)=0
	Molar vapor enthalpy, J/kmol. More...
virtual Value	sv (const Value &T, const Value &P)=0
	Molar vapor entropy, J/kmol/K. More...
Value	gv (const Value &T, const Value &P)
	Molar vapor Gibbs free energy, J/kmol. More...
virtual Value	cpv (const Value &T, const Value &P)=0
	Molar vapor cp, J/kmol/K. More...
Public Member Functions inherited from Diagnostic
	Diagnostic (void)
void	setVerbosity (int verbosity)
	sets the verbosity level for this instance More...
int	verbosity (void) const

Additional Inherited Members
Protected Member Functions inherited from Diagnostic
virtual	~Diagnostic ()=default
Protected Attributes inherited from Diagnostic
int	verbosityInstance

Detailed Description

Abstract interface for the thermal properties of vapors route

#include <libpf/components/RouteHeatVapor.h>

Remarks

Warning

Thread safe:

Extendable:

Platform dependencies:

Constructor & Destructor Documentation

RouteHeatVapor()

RouteHeatVapor::RouteHeatVapor ( void  )

inline

~RouteHeatVapor()

virtual RouteHeatVapor::~RouteHeatVapor ( void  )

inlinevirtual

Member Function Documentation

cpv()

virtual Value RouteHeatVapor::cpv ( const Value &  T, const Value &  P  )

pure virtual

Molar vapor cp, J/kmol/K.

Implemented in RouteHeatVaporVolp, RouteHeatVaporDummy, pdippr, RouteHeatVaporCmu, and RouteHeatVaporDippr.

gv()

Value RouteHeatVapor::gv	(	const Value &	T,
		const Value &	P
	)

Molar vapor Gibbs free energy, J/kmol.

hv()

virtual Value RouteHeatVapor::hv ( const Value &  T, const Value &  P  )

pure virtual

Molar vapor enthalpy, J/kmol.

Implemented in RouteHeatVaporDummy, pdippr, RouteHeatVaporCmu, RouteHeatVaporVolp, and RouteHeatVaporDippr.

sv()

virtual Value RouteHeatVapor::sv ( const Value &  T, const Value &  P  )

pure virtual

Molar vapor entropy, J/kmol/K.

Implemented in RouteHeatVaporDummy, pdippr, RouteHeatVaporCmu, RouteHeatVaporVolp, and RouteHeatVaporDippr.

---

The documentation for this class was generated from the following file:

• RouteHeatVapor.h
