RouteTransportDummy Class Reference

#include <routes.h>

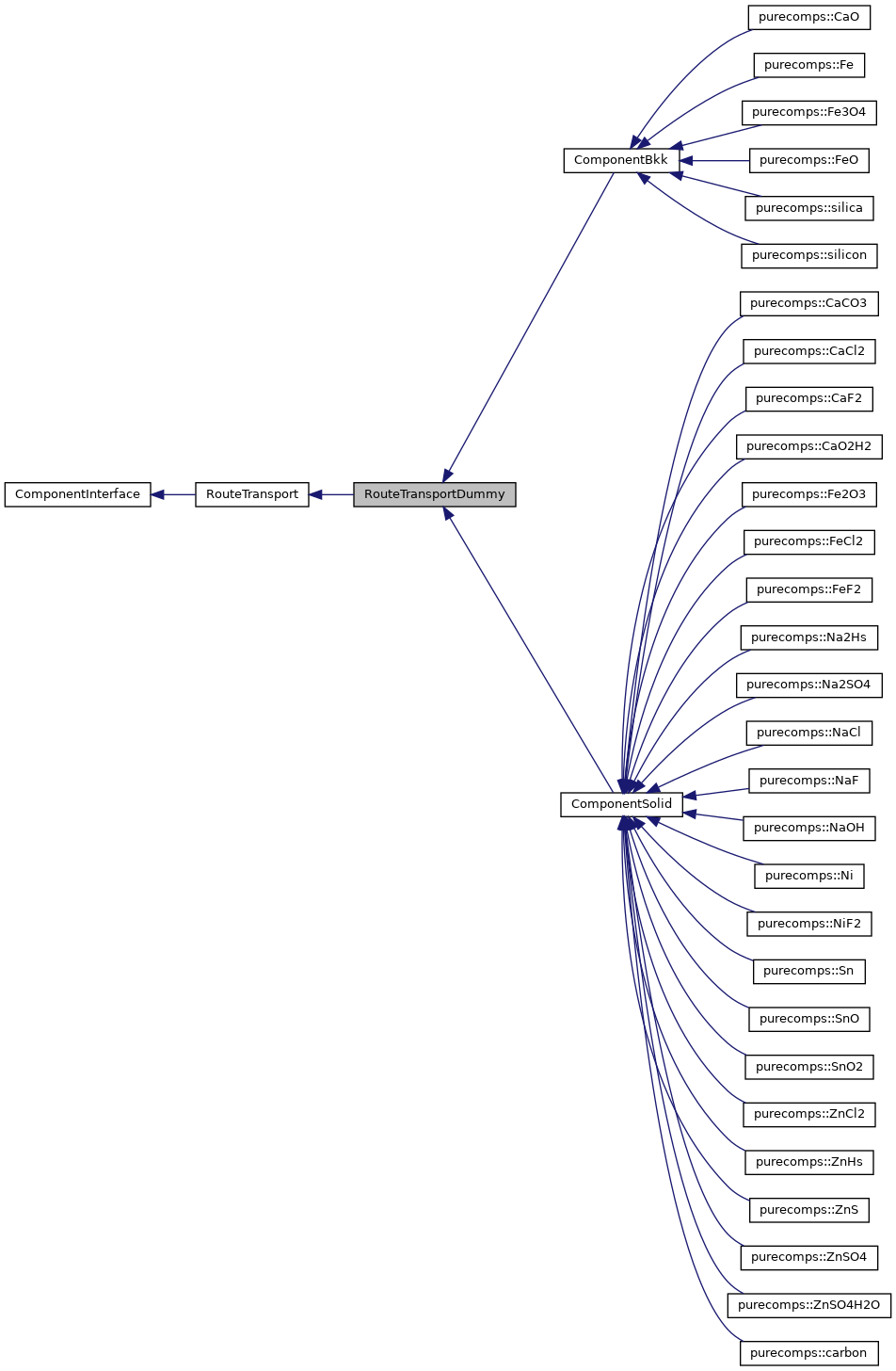

Inheritance diagram for RouteTransportDummy:

Public Member Functions
Value	muv (const Value &T, const Value &P) override
	Vapour viscosity. More...
Value	mul (const Value &T) override
	Liquid viscosity. More...
Value	kv (const Value &T, const Value &P) override
	Vapour thermal conductivity. More...
Value	kl (const Value &T) override
	Liquid thermal conductivity. More...
Value	sigma (const Value &T) override
	Liquid surface tension. More...
Public Member Functions inherited from RouteTransport
	RouteTransport (void)
virtual	~RouteTransport (void)
virtual Value	muv (const Value &T, const Value &P)=0
	Vapour viscosity. More...
virtual Value	mul (const Value &T)=0
	Liquid viscosity. More...
virtual Value	kv (const Value &T, const Value &P)=0
	Vapour thermal conductivity. More...
virtual Value	kl (const Value &T)=0
	Liquid thermal conductivity. More...
virtual Value	sigma (const Value &T)=0
	Liquid surface tension. More...
Value	DG (const Value &T, const Value &P, const Value &mixMW, const Value &mixDiffvol)
	Gas diffusivity. More...
Value	DL (const Value &T)
	Liquid diffusivity. More...
Public Member Functions inherited from ComponentInterface
virtual const Value &	MW (void) const =0
virtual const Value &	Pc (void) const =0
virtual const Value &	Tc (void) const =0
virtual const Value	Vc (void) const =0
virtual const Value &	Zc (void) const =0
virtual const Value &	omega (void) const =0
virtual const Value &	diffvol (void) const =0
virtual const Value &	vb (void) const =0
virtual const Value &	dh0 (void) const =0
virtual const Value &	dg0 (void) const =0

Additional Inherited Members
Protected Member Functions inherited from RouteTransport
	RouteTransport (const RouteTransport &)
	not implemented, making class non copyable More...
RouteTransport &	operator= (const RouteTransport &)
	not implemented, making class non copyable More...
Protected Member Functions inherited from ComponentInterface
virtual	~ComponentInterface ()=default

Detailed Description

Dummy implementation for vapor and liquid transport properties; uses constant values for liquid water and air @ 20 C Used where, in practice, there is not the need of a perfect model for these properties.

#include <libpf/components/routes.h>

Remarks

Warning

Thread safe:

Extendable:

Platform dependencies:

Member Function Documentation

kl()

Value RouteTransportDummy::kl ( const Value &  T )

overridevirtual

Liquid thermal conductivity.

Implements RouteTransport.

kv()

Value RouteTransportDummy::kv ( const Value &  T, const Value &  P  )

overridevirtual

Vapour thermal conductivity.

Implements RouteTransport.

mul()

Value RouteTransportDummy::mul ( const Value &  T )

overridevirtual

Liquid viscosity.

Implements RouteTransport.

muv()

Value RouteTransportDummy::muv ( const Value &  T, const Value &  P  )

overridevirtual

Vapour viscosity.

Implements RouteTransport.

sigma()

Value RouteTransportDummy::sigma ( const Value &  T )

overridevirtual

Liquid surface tension.

Implements RouteTransport.

---

The documentation for this class was generated from the following file:

• routes.h
