RouteVolumeVapor Class Reference

#include <RouteVolumeVapor.h>

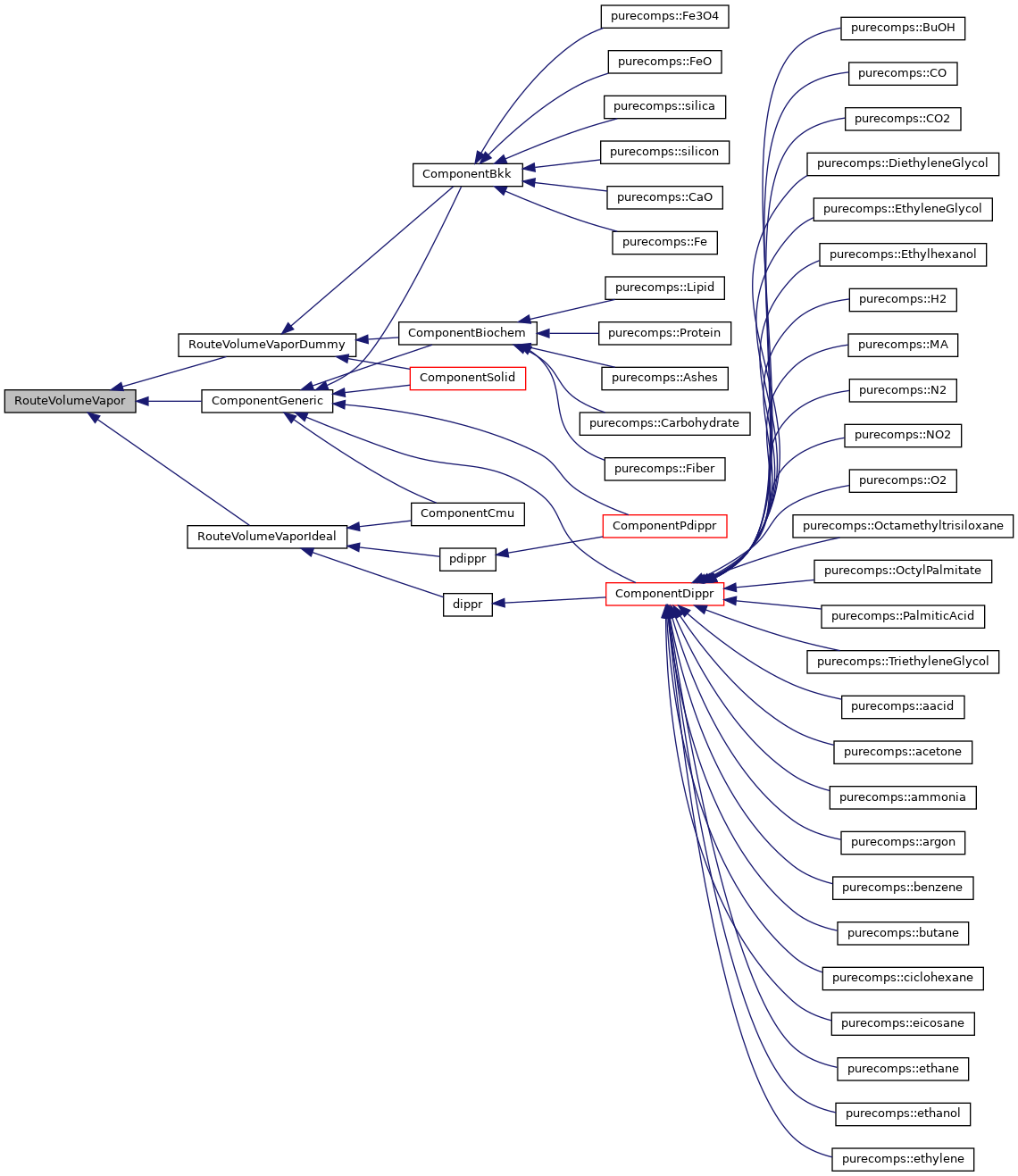

Inheritance diagram for RouteVolumeVapor:

Public Member Functions
	RouteVolumeVapor (void)
virtual	~RouteVolumeVapor (void)
virtual double	p (const double rho, const double T, double *derRho=nullptr, double *derT=nullptr)=0
	Vapor pressure, Pa. Requires the actual implementation of the volumetric properties. More...
Value	p (const Value &rrho, const Value &TT)
	Vapor pressure, Pa. More...
virtual Value	rhov (const Value &T, const Value &P, double *derT=nullptr, double *derP=nullptr)=0
	Molar vapor density, kmol/m3. More...

Detailed Description

Abstract interface for the volumetric properties of vapors route

#include <libpf/components/RouteVolumeVapor.h>

Remarks

Is not an interface for equation of state

Warning

Thread safe:

Extendable:

Platform dependencies:

Constructor & Destructor Documentation

RouteVolumeVapor()

RouteVolumeVapor::RouteVolumeVapor ( void  )

inline

~RouteVolumeVapor()

virtual RouteVolumeVapor::~RouteVolumeVapor ( void  )

inlinevirtual

Member Function Documentation

p() [1/2]

virtual double RouteVolumeVapor::p ( const double  rho, const double  T, double *  derRho = nullptr, double *  derT = nullptr  )

pure virtual

Vapor pressure, Pa. Requires the actual implementation of the volumetric properties.

Implemented in RouteVolumeVaporIdeal, and RouteVolumeVaporDummy.

p() [2/2]

Value RouteVolumeVapor::p	(	const Value &	rrho,
		const Value &	TT
	)

Vapor pressure, Pa.

rhov()

virtual Value RouteVolumeVapor::rhov ( const Value &  T, const Value &  P, double *  derT = nullptr, double *  derP = nullptr  )

pure virtual

Molar vapor density, kmol/m3.

Implemented in RouteVolumeVaporIdeal, and RouteVolumeVaporDummy.

---

The documentation for this class was generated from the following file:

• RouteVolumeVapor.h
