LIBPF® OPC
On-line Connectivity solution based on LIBPF®
The LIBPF OPC (Open Process Connectivity) module is an extension to LIBPF® to add plant control system connectivity to model-based solutions developed with the LIBPF® process modeling technology.
Architecture
LIBPF® OPC connects to the plant control system as an OPC client via the Classic OPC compliant Data Access server (OPC DA) protocol.
Classic OPC is the de-facto standard (https://opcfoundation.org/) interface for real-time data exchange with field automation in the process industry.
Using this vendor-independent multi-platform interface with the plant control system LIBPF® OPC can easily talk to:
-
PLC (Programmable Logic Controller);
-
DCS (Distributed Control System);
-
Real-time databases;
-
**SCADA **(Supervisory Control And Data Acquisition) systems.

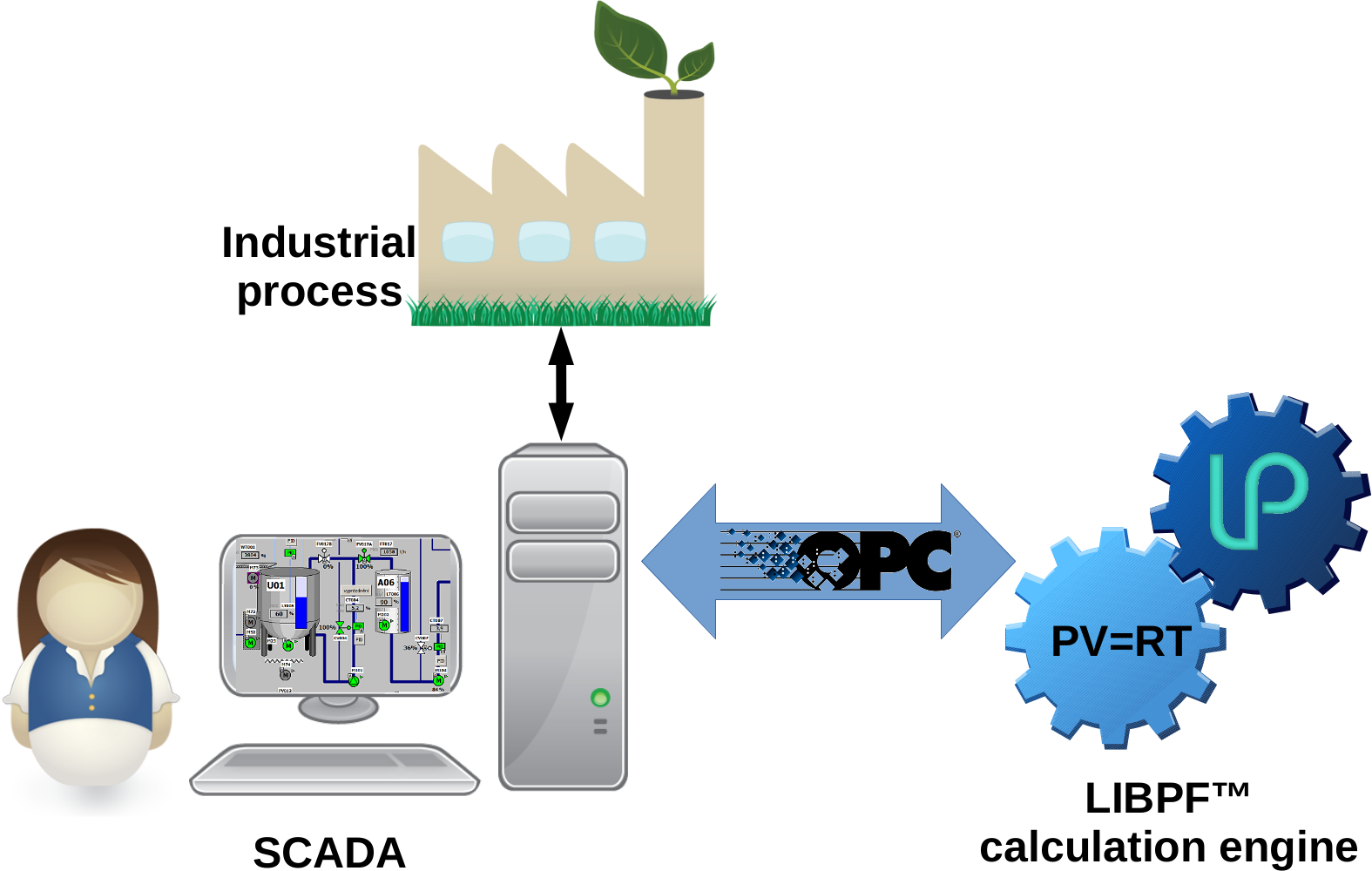

A sample architecture for an application based on LIBPF® OPC, where it is interfaced to the SCADA is:
Such an application would typically operate as a Windows service when in production, while a console mode is available for testing.
Have a look at this demo video which demonstrates installing and running a LIBPF® OPC application on Windows 7:
Troubleshooting tools are available:
-
a tracing facility with tunable verbosity for diagnostic messages based on an operating system level communication protocol (named pipes);
-
the operating system event log for information, warning and error messages.
Two operation modes are possible:
-
In an event-driven configuration the service will sit and wait for update events from the OPC server; when one such event is signaled, it triggers execution.
-
In a timed-execution configuration the service will start the execution at regular intervals.
Applications
-
First-principle Soft Sensors;
-
Data reconciliation based on mass and energy balances;
-
Pilot Plant monitoring;
-
Process diagnostic (heat exchanger fouling, catalyst or electrode deactivation).
Features
-
Runs on Microsoft Windows Server 2012 and Windows 10;
-
Compatible with OPC DA 2.0 client specification;
-
Simple and compact architecture;
-
Works with any PLC, DCS, real-time database and SCADA;
-
Configure with a single XML file;
-
1 .. 10 .. 100 soft-sensors in one server;
-
Flexible and extensible.
Documentation
For more information, have a look at the LIBPF® OPC Installation manual (English and Italian, and the LIBPF® OPC Maintenance and user manual (English and Italian).
