ChoiOkos Class Reference

#include <ChoiOkos.h>

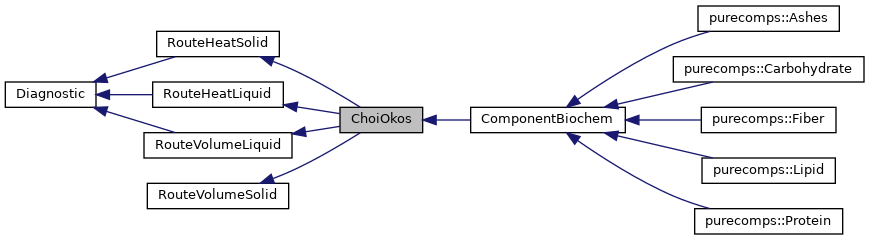

Inheritance diagram for ChoiOkos:

Public Member Functions
	ChoiOkos (ParameterChoiOkos v, ParameterChoiOkos w)
	~ChoiOkos (void)
void	sethost (ComponentInterface *host)
Value	hs (const Value &T, const Value &P) override
	Molar solid enthalpy, J/kmol. More...
Value	ss (const Value &T, const Value &P) override
	Molar solid entropy, J/kmol/K. More...
Value	cps (const Value &T, const Value &P) override
	Molar solid cp, J/kmol/K. More...
Value	rhos (const Value &T, const Value &P, double *derT=nullptr) override
	Molar solid density, kmol/m3. More...
Value	hl (const Value &T, const Value &P) override
	Molar liquid enthalpy, J/kmol. More...
Value	sl (const Value &T, const Value &P) override
	Molar liquid entropy, J/kmol/K. More...
Value	cpl (const Value &T, const Value &P) override
	Molar liquid cp, J/kmol/K. More...
Value	rhol (const Value &T, const Value &P, double *derT=nullptr) override
	Molar liquid density, kmol/m3. More...
Public Member Functions inherited from RouteHeatSolid
	RouteHeatSolid (void)
virtual	~RouteHeatSolid (void)
virtual Value	hs (const Value &T, const Value &P)=0
	Molar solid enthalpy, J/kmol. More...
virtual Value	ss (const Value &T, const Value &P)=0
	Molar solid entropy, J/kmol/K. More...
Value	gs (const Value &T, const Value &P)
	Molar solid Gibbs free energy, J/kmol. More...
virtual Value	cps (const Value &T, const Value &P)=0
	Molar solid cp, J/kmol/K. More...
Public Member Functions inherited from Diagnostic
	Diagnostic (void)
void	setVerbosity (int verbosity)
	sets the verbosity level for this instance More...
int	verbosity (void) const
Public Member Functions inherited from RouteHeatLiquid
	RouteHeatLiquid (void)
virtual	~RouteHeatLiquid (void)
virtual Value	hl (const Value &T, const Value &P)=0
	Molar liquid enthalpy, J/kmol. More...
virtual Value	sl (const Value &T, const Value &P)=0
	Molar liquid entropy, J/kmol/K. More...
Value	gl (const Value &T, const Value &P)
	Molar liquid Gibbs free energy, J/kmol. More...
virtual Value	cpl (const Value &T, const Value &P)=0
	Molar liquid cp, J/kmol/K. More...
virtual Value	rhos (const Value &T, const Value &P, double *derT=nullptr)=0
	Molar solid density, kmol/m3. More...
Public Member Functions inherited from RouteVolumeLiquid
	RouteVolumeLiquid (void)
virtual	~RouteVolumeLiquid (void)
virtual Value	rhol (const Value &T, const Value &P, double *derT=nullptr)=0
	Molar liquid density, kmol/m3. More...

Additional Inherited Members
Protected Member Functions inherited from Diagnostic
virtual	~Diagnostic ()=default
Protected Member Functions inherited from RouteVolumeSolid
virtual	~RouteVolumeSolid ()=default
Protected Attributes inherited from Diagnostic
int	verbosityInstance

Detailed Description

Property routes for food processing.
Correlations for density and specific heats and related thermodynamic properties for protein, fat, carbohydrate, fiber, ash in the liquid or solid phase according to Choi-Okos 1987

#include <libpf/components/ChoiOkos.h>

Remarks

Warning

Thread safe:

Extendable:

Platform dependencies:

Constructor & Destructor Documentation

ChoiOkos()

ChoiOkos::ChoiOkos ( ParameterChoiOkos  v, ParameterChoiOkos  w  )

inline

Parameters

v	heat parameter
w	density parameter

~ChoiOkos()

ChoiOkos::~ChoiOkos ( void  )

inline

Member Function Documentation

cpl()

Value ChoiOkos::cpl ( const Value &  T, const Value &  P  )

overridevirtual

Molar liquid cp, J/kmol/K.

Implements RouteHeatLiquid.

cps()

Value ChoiOkos::cps ( const Value &  T, const Value &  P  )

overridevirtual

Molar solid cp, J/kmol/K.

Implements RouteHeatSolid.

hl()

Value ChoiOkos::hl ( const Value &  T, const Value &  P  )

overridevirtual

Molar liquid enthalpy, J/kmol.

Implements RouteHeatLiquid.

hs()

Value ChoiOkos::hs ( const Value &  T, const Value &  P  )

overridevirtual

Molar solid enthalpy, J/kmol.

Implements RouteHeatSolid.

rhol()

Value ChoiOkos::rhol ( const Value &  T, const Value &  P, double *  derT = nullptr  )

overridevirtual

Molar liquid density, kmol/m3.

Implements RouteVolumeLiquid.

rhos()

Value ChoiOkos::rhos ( const Value &  T, const Value &  P, double *  derT = nullptr  )

overridevirtual

Molar solid density, kmol/m3.

Implements RouteVolumeSolid.

sethost()

void ChoiOkos::sethost

(

ComponentInterface *

host

)

sl()

Value ChoiOkos::sl ( const Value &  T, const Value &  P  )

overridevirtual

Molar liquid entropy, J/kmol/K.

Implements RouteHeatLiquid.

ss()

Value ChoiOkos::ss ( const Value &  T, const Value &  P  )

overridevirtual

Molar solid entropy, J/kmol/K.

Implements RouteHeatSolid.

---

The documentation for this class was generated from the following file:

• ChoiOkos.h
