#include <ComponentCmu.h>

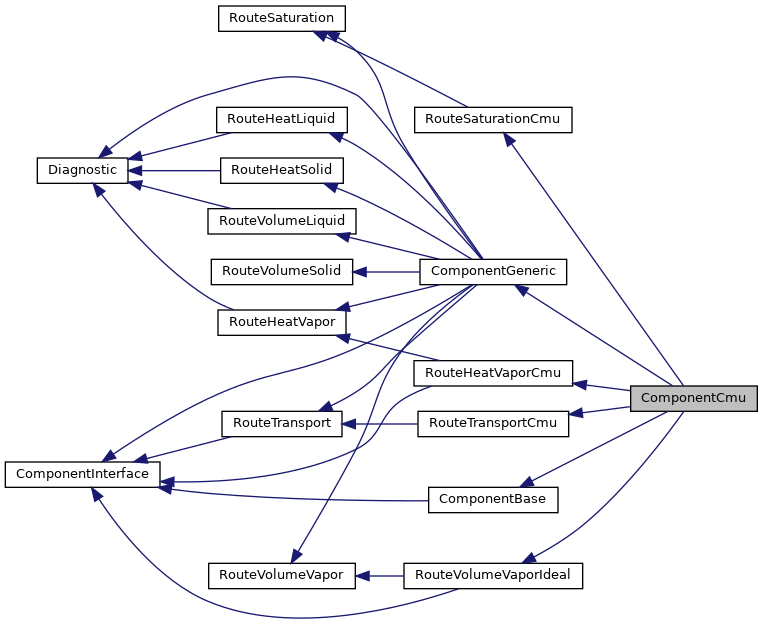

Inheritance diagram for ComponentCmu:

[legend]

Public Member Functions
	ComponentCmu (std::string n, const Value &mw, const Value &Pc, const Value &Tc, const Value &rhoc, const Value &diffvol, const Value &vb, const Value &dh0, const Value &dg0, const Value &zc, const Value &omega, double aa, double bb, double cc, double tmx, double tmn, double cpa, double cpb, double cpc, double cpd, double mub, double muc)

	~ComponentCmu (void)

Value	cpl (const Value &TT, const Value &PP) override
	Molar liquid cp, J/kmol/K. More...

Value	hl (const Value &TT, const Value &) override
	Molar liquid enthalpy, J/kmol. More...

Value	sl (const Value &T, const Value &P) override
	Molar liquid entropy, J/kmol/K. More...

Value	rhol (const Value &T, const Value &P, double *derT=nullptr) override
	Molar liquid density, kmol/m3. More...

Value	dhvl (const Value &TT, double *derT=nullptr) override
	Vapour-Liquid enthalpy difference. More...

Public Member Functions inherited from ComponentGeneric
	ComponentGeneric (std::string name)

virtual	~ComponentGeneric (void)

const std::string &	name (void) const

int	id (void) const

void	setid (int idd)

virtual Value	kvli (const Value &T, const Value &P)

virtual bool	isSolid (void)=0

virtual bool	isGas (void)

Public Member Functions inherited from Diagnostic
	Diagnostic (void)

void	setVerbosity (int verbosity)
	sets the verbosity level for this instance More...

int	verbosity (void) const

virtual const Value &	MW (void) const =0

virtual const Value &	Pc (void) const =0

virtual const Value &	Tc (void) const =0

virtual const Value	Vc (void) const =0

virtual const Value &	Zc (void) const =0

virtual const Value &	omega (void) const =0

virtual const Value &	diffvol (void) const =0

virtual const Value &	vb (void) const =0

virtual const Value &	dh0 (void) const =0

virtual const Value &	dg0 (void) const =0

Public Member Functions inherited from RouteSaturation
	RouteSaturation (void)

virtual	~RouteSaturation (void)

virtual Value	psat (const Value &T, double derT=nullptr, double der2T=nullptr)=0
	Vapour pressure of saturation. More...

virtual Value	dhvl (const Value &T, double *derT=nullptr)=0
	Vapour-Liquid enthalpy difference. More...

Public Member Functions inherited from RouteHeatVapor
	RouteHeatVapor (void)

virtual	~RouteHeatVapor (void)

virtual Value	hv (const Value &T, const Value &P)=0
	Molar vapor enthalpy, J/kmol. More...

virtual Value	sv (const Value &T, const Value &P)=0
	Molar vapor entropy, J/kmol/K. More...

Value	gv (const Value &T, const Value &P)
	Molar vapor Gibbs free energy, J/kmol. More...

virtual Value	cpv (const Value &T, const Value &P)=0
	Molar vapor cp, J/kmol/K. More...

Public Member Functions inherited from RouteHeatLiquid
	RouteHeatLiquid (void)

virtual	~RouteHeatLiquid (void)

virtual Value	hl (const Value &T, const Value &P)=0
	Molar liquid enthalpy, J/kmol. More...

virtual Value	sl (const Value &T, const Value &P)=0
	Molar liquid entropy, J/kmol/K. More...

Value	gl (const Value &T, const Value &P)
	Molar liquid Gibbs free energy, J/kmol. More...

virtual Value	cpl (const Value &T, const Value &P)=0
	Molar liquid cp, J/kmol/K. More...

Public Member Functions inherited from RouteHeatSolid
	RouteHeatSolid (void)

virtual	~RouteHeatSolid (void)

virtual Value	hs (const Value &T, const Value &P)=0
	Molar solid enthalpy, J/kmol. More...

virtual Value	ss (const Value &T, const Value &P)=0
	Molar solid entropy, J/kmol/K. More...

Value	gs (const Value &T, const Value &P)
	Molar solid Gibbs free energy, J/kmol. More...

virtual Value	cps (const Value &T, const Value &P)=0
	Molar solid cp, J/kmol/K. More...

Public Member Functions inherited from RouteTransport
	RouteTransport (void)

virtual	~RouteTransport (void)

virtual Value	muv (const Value &T, const Value &P)=0
	Vapour viscosity. More...

virtual Value	mul (const Value &T)=0
	Liquid viscosity. More...

virtual Value	kv (const Value &T, const Value &P)=0
	Vapour thermal conductivity. More...

virtual Value	kl (const Value &T)=0
	Liquid thermal conductivity. More...

virtual Value	sigma (const Value &T)=0
	Liquid surface tension. More...

Value	DG (const Value &T, const Value &P, const Value &mixMW, const Value &mixDiffvol)
	Gas diffusivity. More...

Value	DL (const Value &T)
	Liquid diffusivity. More...

Public Member Functions inherited from RouteVolumeVapor
	RouteVolumeVapor (void)

virtual	~RouteVolumeVapor (void)

virtual double	p (const double rho, const double T, double derRho=nullptr, double derT=nullptr)=0
	Vapor pressure, Pa. Requires the actual implementation of the volumetric properties. More...

Value	p (const Value &rrho, const Value &TT)
	Vapor pressure, Pa. More...

virtual Value	rhov (const Value &T, const Value &P, double derT=nullptr, double derP=nullptr)=0
	Molar vapor density, kmol/m3. More...

Public Member Functions inherited from RouteVolumeLiquid
	RouteVolumeLiquid (void)

virtual	~RouteVolumeLiquid (void)

virtual Value	rhol (const Value &T, const Value &P, double *derT=nullptr)=0
	Molar liquid density, kmol/m3. More...

Public Member Functions inherited from RouteVolumeSolid
virtual Value	rhos (const Value &T, const Value &P, double *derT=nullptr)=0
	Molar solid density, kmol/m3. More...

Public Member Functions inherited from ComponentBase
	ComponentBase (const Value &mw, const Value &Pc, const Value &Tc, const Value &rhoc, const Value &diffvol, const Value &vb, const Value &dh0, const Value &dg0, const Value &zc, const Value &omega)
	preferred constructor More...

	ComponentBase (const Value &mw)
	dummy constructor will set remaining parameters to dummy values More...

virtual	~ComponentBase (void)

const Value &	MW (void) const override

const Value &	Pc (void) const override

const Value &	Tc (void) const override

const Value &	Zc (void) const override

const Value	Vc (void) const override

const Value &	omega (void) const override

const Value &	diffvol (void) const override

const Value &	vb (void) const override

const Value &	dh0 (void) const override

const Value &	dg0 (void) const override

Public Member Functions inherited from RouteSaturationCmu
	RouteSaturationCmu (double aa, double bb, double cc, double tmx, double tmn)

Value	psat (const Value &T, double derT=nullptr, double der2T=nullptr) override
	Vapour pressure of saturation. More...

Public Member Functions inherited from RouteHeatVaporCmu
	RouteHeatVaporCmu (double aa, double bb, double cc, double dd)

Value	cpv (const Value &TT, const Value &) override
	Molar vapor cp, J/kmol/K. More...

Value	hv (const Value &TT, const Value &) override
	Molar vapor enthalpy, J/kmol. More...

Value	sv (const Value &TT, const Value &) override
	Molar vapor entropy, J/kmol/K. More...

Public Member Functions inherited from RouteTransportCmu
	RouteTransportCmu (double bb, double cc)

Value	muv (const Value &T, const Value &P) override
	Vapour viscosity. More...

Value	mul (const Value &TT) override
	Liquid viscosity. More...

Value	kv (const Value &T, const Value &P) override
	Vapour thermal conductivity. More...

Value	kl (const Value &T) override
	Liquid thermal conductivity. More...

Value	sigma (const Value &T) override
	Liquid surface tension. More...

Public Member Functions inherited from RouteVolumeVaporIdeal
	RouteVolumeVaporIdeal (void)

double	p (const double rho, const double T, double derRho=nullptr, double derT=nullptr) override
	Vapor pressure, Pa. Requires the actual implementation of the volumetric properties. More...

Value	rhov (const Value &T, const Value &P, double derT=nullptr, double derP=nullptr) override
	Molar vapor density, kmol/m3. More...

Additional Inherited Members
Protected Member Functions inherited from Diagnostic
virtual	~Diagnostic ()=default

Protected Member Functions inherited from ComponentInterface
virtual	~ComponentInterface ()=default

Protected Member Functions inherited from RouteTransport
	RouteTransport (const RouteTransport &)
	not implemented, making class non copyable More...

RouteTransport &	operator= (const RouteTransport &)
	not implemented, making class non copyable More...

Protected Member Functions inherited from RouteVolumeSolid
virtual	~RouteVolumeSolid ()=default

Protected Attributes inherited from Diagnostic
int	verbosityInstance

Protected Attributes inherited from ComponentBase
Value	MW_
	molecular weight More...

Value	Pc_
	critical pressure, Pa More...

Value	Tc_
	critical temperature, K More...

Value	rhoc_
	molar density at the critical point, kmol/m3 More...

Value	diffvol_
	molar diffusivity parameter More...

Value	vb_
	molar volume at boiling point, m3/kmol More...

Value	zc_
	critical compressibility factor More...

Value	dh0_
	enthalpy of formation in the isIdeal gas phase at 1 atm 298.15 K, J/kmol More...

Value	dg0_
	Gibbs free energy of formation in the isIdeal gas phase at 1 atm 298.15 K, J/kmol. More...

Value	omega_
	acentric factor More...

Protected Attributes inherited from RouteSaturationCmu
double	a_

double	b_

double	c_

double	tmx_

double	tmn_

Detailed Description

Liquid and vapor component model based on the CMU (Carnegie Mellon University) database

#include <libpf/components/ComponentCmu.h>

Remarks

Warning: Only for vapor and liquid component; Thread safe:; Extendable:; Platform dependencies:

Constructor & Destructor Documentation

◆ ComponentCmu()

ComponentCmu::ComponentCmu	(	std::string	n,
		const Value &	mw,
		const Value &	Pc,
		const Value &	Tc,
		const Value &	rhoc,
		const Value &	diffvol,
		const Value &	vb,
		const Value &	dh0,
		const Value &	dg0,
		const Value &	zc,
		const Value &	omega,
		double	aa,
		double	bb,
		double	cc,
		double	tmx,
		double	tmn,
		double	cpa,
		double	cpb,
		double	cpc,
		double	cpd,
		double	mub,
		double	muc
	)

◆ ~ComponentCmu()

ComponentCmu::~ComponentCmu ( void )

inline

Member Function Documentation

◆ cpl()

Value ComponentCmu::cpl	(	const Value &	T,
		const Value &	P
	)

overridevirtual

Molar liquid cp, J/kmol/K.

Implements RouteHeatLiquid.

◆ dhvl()

Value ComponentCmu::dhvl	(	const Value &	T,
		double *	derT = `nullptr`
	)

overridevirtual

Vapour-Liquid enthalpy difference.

Implements RouteSaturation.

◆ hl()

Value ComponentCmu::hl	(	const Value &	T,
		const Value &	P
	)

overridevirtual

Molar liquid enthalpy, J/kmol.

Implements RouteHeatLiquid.

◆ rhol()

Value ComponentCmu::rhol	(	const Value &	T,
		const Value &	P,
		double *	derT = `nullptr`
	)

overridevirtual

Molar liquid density, kmol/m3.

Implements RouteVolumeLiquid.

◆ sl()

Value ComponentCmu::sl	(	const Value &	T,
		const Value &	P
	)

overridevirtual

Molar liquid entropy, J/kmol/K.

Implements RouteHeatLiquid.

The documentation for this class was generated from the following file:

ComponentCmu.h
