Sensitivity Class Reference

#include <Sensitivity.h>

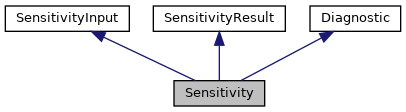

Inheritance diagram for Sensitivity:

Public Member Functions

 Sensitivity (SensitivityInput sensitivityInput, const char *xmlOutputFileName="SensitivityResults.xml")
 initialize from external SensitivityInput object More...

 ~Sensitivity (void)

void setModel (Model *model)
 set the internally-held pointer to the Model object More...

Modelmodel (void)
 get the internally-held pointer to the Model object More...

int maxRound (void) const
 return the total number of rounds More...

void execute (void)

- Public Member Functions inherited from SensitivityInput
 SensitivityInput (std::string name, std::string type, int id, std::string order, double timeout, int startingRound)

 SensitivityInput (void)

std::ostream & printInputs_ (std::ostream &os) const
 helper function for printing inputs to streams More...

bool check (void)

const std::string & type (void) const
 get the type of the model to analyze More...

int id (void) const
 get the id of the model to analyze More...

int startingRound (void) const
 get the starting round for the sensitivity More...

void addControlledVariable (const ControlledVariable &cv)
 add the controlled variable More...

void addMonitoredVariable (const MonitoredVariable &mv)
 add the monitored variable More...

std::ostream & print_ (std::ostream &os) const
 informative print More...

std::string json (void) const

bool operator== (const SensitivityInput &rhs) const

- Public Member Functions inherited from SensitivityResult
std::ostream & printResults_ (std::ostream &os) const
 informative print More...

std::ostream & printXmlResults (std::ostream &os) const
 serialize to XML More...

std::string json (void) const

- Public Member Functions inherited from Diagnostic
 Diagnostic (void)

void setVerbosity (int verbosity)
 sets the verbosity level for this instance More...

int verbosity (void) const


Friends

std::ostream & operator<< (std::ostream &os, const Sensitivity &sensitivity)


Additional Inherited Members

- Public Attributes inherited from SensitivityResult
std::vector< Resultresults_

- Protected Member Functions inherited from Diagnostic
virtual ~Diagnostic ()=default

- Protected Attributes inherited from SensitivityInput
std::string name_
 optional UTF-encoded string with a descriptive name More...

std::string type_
 mandatory UTF-encoded string with the type of the model to analyze More...

int id_
 mandatory non-negative integer, id of the model to analyze More...

std::string order_
 mandatory order of execution, can be: lexicographic, boustrophedon or quasi-spiral More...

double timeout_
 optional maximum running time in seconds (to be enforced by the client) More...

int startingRound_
 mandatory non-negative integer, valud of the sequential counter based on the chosen ordering More...

std::vector< ControlledVariablecontrolled_
 Controlled variables: at least one. More...

std::vector< MonitoredVariablemonitored_
 Monitored variables. More...

- Protected Attributes inherited from Diagnostic
int verbosityInstance


Detailed Description

for multi-dimensional kernel-side sensitivities constructed from XML file

#include <libpf/core/Sensitivity.h>

Remarks
Warning
Thread safe:
Extendable:
Platform dependencies:

Constructor & Destructor Documentation

◆ Sensitivity()

Sensitivity::Sensitivity ( SensitivityInput  sensitivityInput,
const char *  xmlOutputFileName = "SensitivityResults.xml"
)

initialize from external SensitivityInput object

◆ ~Sensitivity()

Sensitivity::~Sensitivity ( void  )

Member Function Documentation

◆ execute()

void Sensitivity::execute ( void  )

execute the multi-variable sensitivity with the specified order save XML results file after each round

◆ maxRound()

int Sensitivity::maxRound ( void  ) const

return the total number of rounds

◆ model()

Model * Sensitivity::model ( void  )

get the internally-held pointer to the Model object

◆ setModel()

void Sensitivity::setModel ( Model model)

set the internally-held pointer to the Model object

Friends And Related Function Documentation

◆ operator<<

std::ostream & operator<< ( std::ostream &  os,
const Sensitivity sensitivity
)
friend

The documentation for this class was generated from the following file:
