#include <SolverNleInterface.h>

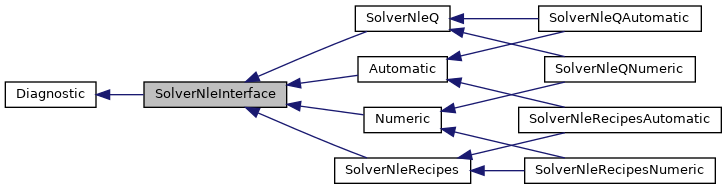

Inheritance diagram for SolverNleInterface:

[legend]

Public Member Functions
	SolverNleInterface (ObjectiveNleInterface &of)

int	size (void) const

virtual void	resize (int n)
	sets the number of unknowns More...

void	print_table (double xmin, double xmax, int nsteps)
	print dependence on all unknowns More...

void	printResults (void)
	print vector of results More...

void	printMetrics (void)
	print metric counters More...

virtual void	setTolerances (double, double, double, double)=0
	virtual function, has different meaning for the different solvers derived from SolverNleInterface More...

void	setMaximumIterations (int m)
	sets the maximum number of iterations More...

void	setMaximumStepSize (double stpmx)

void	bmpout (char *file_out_name) const

double	residual (int i)
	returns current value of the ith component of the residual vector More...

virtual double	norm (const double *x)=0
	return root mean square (RMS) norm More...

virtual double	calculateF (void)=0
	calculates F; returns the norm of the residuals More...

virtual double	calculateFJ (void)=0
	calculates F and J; returns the norm of the residuals More...

virtual int	solve (void)=0

virtual std::string	message (int code)=0
	convert return code returned by solve method to human-readable message More...

virtual void	verifySolution (void)=0
	evaluate equation set at the current set up estimates for the unknowns; useful to test for convergence after sequential solution More...

bool	nonConverged (void)

Public Member Functions inherited from Diagnostic
	Diagnostic (void)

void	setVerbosity (int verbosity)
	sets the verbosity level for this instance More...

int	verbosity (void) const

Public Attributes
int	NITER

double *	F_
	current values of residuals More...

double *	x_
	current values of unknowns More...

Jacobian	J

Protected Member Functions
	~SolverNleInterface (void)

void	clearCounters (void)

Protected Member Functions inherited from Diagnostic
virtual	~Diagnostic ()=default

Protected Attributes
ObjectiveNleInterface *	ofp_

int	MAXITS
	maximum number of Newton iterations More...

int	verbosityLocal

int	nSyst_
	Number of system evaluations. More...

int	nNewt_
	Number of Newton method applications. More...

int	nQuas_
	Number of Quasi Newton method applications. More...

int	nAuto_
	Number of analytical Jacobian evaluations. More...

int	nNume_
	Number of numerical Jacobian evaluations. More...

double	STPMX
	scaled maximum step length allowed in line searches More...

Protected Attributes inherited from Diagnostic
int	verbosityInstance

Detailed Description

Interface to solver of systems of non-linear algebraic equations

#include <libpf/core/SolverNleInterface.h>

Remarks

Warning: Thread safe:; Extendable:; Platform dependencies:

Constructor & Destructor Documentation

◆ ~SolverNleInterface()

SolverNleInterface::~SolverNleInterface ( void )

protected

◆ SolverNleInterface()

SolverNleInterface::SolverNleInterface ( ObjectiveNleInterface & of )

Member Function Documentation

◆ bmpout()

void SolverNleInterface::bmpout ( char * file_out_name ) const

output the Jacobian sparsity signature as a bitmap

See also: Jacobian::bmpout

◆ calculateF()

virtual double SolverNleInterface::calculateF ( void )

pure virtual

calculates F; returns the norm of the residuals

Implemented in Numeric, and Automatic.

◆ calculateFJ()

virtual double SolverNleInterface::calculateFJ ( void )

pure virtual

calculates F and J; returns the norm of the residuals

Implemented in Numeric, and Automatic.

◆ clearCounters()

void SolverNleInterface::clearCounters ( void )

protected

◆ message()

virtual std::string SolverNleInterface::message ( int code )

pure virtual

convert return code returned by solve method to human-readable message

Implemented in SolverNleQ, and SolverNleRecipes.

◆ nonConverged()

bool SolverNleInterface::nonConverged ( void )

returns true if the current value of half of the square of norm of the objective function vector is greater than 1e-3, or nan or inf

◆ norm()

virtual double SolverNleInterface::norm ( const double * x )

pure virtual

return root mean square (RMS) norm

Implemented in SolverNleQ, and SolverNleRecipes.

◆ print_table()

void SolverNleInterface::print_table	(	double *	xmin,
		double *	xmax,
		int	nsteps
	)

print dependence on all unknowns

◆ printMetrics()

void SolverNleInterface::printMetrics ( void )

print metric counters

◆ printResults()

void SolverNleInterface::printResults ( void )

print vector of results

◆ residual()

double SolverNleInterface::residual ( int i )

returns current value of the ith component of the residual vector

◆ resize()

virtual void SolverNleInterface::resize ( int n )

virtual

sets the number of unknowns

Reimplemented in Numeric, SolverNleQ, SolverNleQNumeric, SolverNleRecipes, and SolverNleRecipesNumeric.

◆ setMaximumIterations()

void SolverNleInterface::setMaximumIterations ( int m )

sets the maximum number of iterations

◆ setMaximumStepSize()

void SolverNleInterface::setMaximumStepSize ( double stpmx )

sets the maximum step size, as a fraction of the max between the square root of the sum of squares of the current estimate of the solution, and the number of unknowns the the maximum step size is them used as a bound for the sum of squares of the step in the line search note: this parameter only has an effect for the SolverNleRecipes solver

◆ setTolerances()

virtual void SolverNleInterface::setTolerances	(	double	,
		double	,
		double	,
		double
	)

pure virtual

virtual function, has different meaning for the different solvers derived from SolverNleInterface

Implemented in SolverNleRecipes, and SolverNleQ.

◆ size()

int SolverNleInterface::size ( void ) const

◆ solve()

virtual int SolverNleInterface::solve ( void )

pure virtual

Globally convergent Newton's method algorithm zero return code: solved ok negative return code: solved with warnings positive return code: unrecoverable error

Implemented in SolverNleQ, and SolverNleRecipes.

◆ verifySolution()

virtual void SolverNleInterface::verifySolution ( void )

pure virtual

evaluate equation set at the current set up estimates for the unknowns; useful to test for convergence after sequential solution

Implemented in Numeric, and Automatic.

Member Data Documentation

◆ F_

double* SolverNleInterface::F_

current values of residuals

◆ J

Jacobian SolverNleInterface::J

◆ MAXITS

int SolverNleInterface::MAXITS

protected

maximum number of Newton iterations

◆ nAuto_

int SolverNleInterface::nAuto_

protected

Number of analytical Jacobian evaluations.

◆ NITER

int SolverNleInterface::NITER

◆ nNewt_

int SolverNleInterface::nNewt_

protected

Number of Newton method applications.

◆ nNume_

int SolverNleInterface::nNume_

protected

Number of numerical Jacobian evaluations.

◆ nQuas_

int SolverNleInterface::nQuas_

protected

Number of Quasi Newton method applications.

◆ nSyst_

int SolverNleInterface::nSyst_

protected

Number of system evaluations.

◆ ofp_

ObjectiveNleInterface* SolverNleInterface::ofp_

protected

◆ STPMX

double SolverNleInterface::STPMX

protected

scaled maximum step length allowed in line searches

◆ verbosityLocal

int SolverNleInterface::verbosityLocal

protected

◆ x_

double* SolverNleInterface::x_

current values of unknowns

The documentation for this class was generated from the following file:

SolverNleInterface.h
