#include <SolverNleRecipes.h>

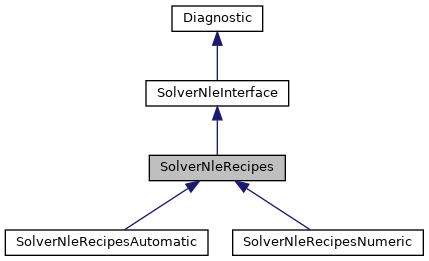

Inheritance diagram for SolverNleRecipes:

[legend]

Public Member Functions
	SolverNleRecipes (int, ObjectiveNleInterface &)

void	resize (int n) override
	sets the number of unknowns More...

double	norm (const double *x) override
	return energy-norm More...

int	solve (void) override

std::string	message (int code) override

void	setTolerances (double alf, double tolx, double tolf, double tolmin) override

Public Member Functions inherited from SolverNleInterface
	SolverNleInterface (ObjectiveNleInterface &of)

int	size (void) const

virtual void	resize (int n)
	sets the number of unknowns More...

void	print_table (double xmin, double xmax, int nsteps)
	print dependence on all unknowns More...

void	printResults (void)
	print vector of results More...

void	printMetrics (void)
	print metric counters More...

virtual void	setTolerances (double, double, double, double)=0
	virtual function, has different meaning for the different solvers derived from SolverNleInterface More...

void	setMaximumIterations (int m)
	sets the maximum number of iterations More...

void	setMaximumStepSize (double stpmx)

void	bmpout (char *file_out_name) const

double	residual (int i)
	returns current value of the ith component of the residual vector More...

virtual double	norm (const double *x)=0
	return root mean square (RMS) norm More...

virtual double	calculateF (void)=0
	calculates F; returns the norm of the residuals More...

virtual double	calculateFJ (void)=0
	calculates F and J; returns the norm of the residuals More...

virtual int	solve (void)=0

virtual std::string	message (int code)=0
	convert return code returned by solve method to human-readable message More...

virtual void	verifySolution (void)=0
	evaluate equation set at the current set up estimates for the unknowns; useful to test for convergence after sequential solution More...

bool	nonConverged (void)

Public Member Functions inherited from Diagnostic
	Diagnostic (void)

void	setVerbosity (int verbosity)
	sets the verbosity level for this instance More...

int	verbosity (void) const

Protected Member Functions
	~SolverNleRecipes (void)

int	lnsrch_ (double fold, double &f, double stpmax)

Protected Member Functions inherited from SolverNleInterface
	~SolverNleInterface (void)

void	clearCounters (void)

Protected Member Functions inherited from Diagnostic
virtual	~Diagnostic ()=default

Protected Attributes
int *	indx_

double *	g_

double *	p_

double *	xold_

std::vector< double >	d_
	buffer to normalize Jacobian columns More...

Protected Attributes inherited from SolverNleInterface
ObjectiveNleInterface *	ofp_

int	MAXITS
	maximum number of Newton iterations More...

int	verbosityLocal

int	nSyst_
	Number of system evaluations. More...

int	nNewt_
	Number of Newton method applications. More...

int	nQuas_
	Number of Quasi Newton method applications. More...

int	nAuto_
	Number of analytical Jacobian evaluations. More...

int	nNume_
	Number of numerical Jacobian evaluations. More...

double	STPMX
	scaled maximum step length allowed in line searches More...

Protected Attributes inherited from Diagnostic
int	verbosityInstance

Additional Inherited Members
Public Attributes inherited from SolverNleInterface
int	NITER

double *	F_
	current values of residuals More...

double *	x_
	current values of unknowns More...

Jacobian	J

Detailed Description

Resolution of systems of non-linear equations

#include <libpf/core/SolverNleRecipes.h>

Remarks

Warning: Thread safe:; Extendable:; Platform dependencies:

Constructor & Destructor Documentation

◆ ~SolverNleRecipes()

SolverNleRecipes::~SolverNleRecipes ( void )

protected

◆ SolverNleRecipes()

SolverNleRecipes::SolverNleRecipes	(	int	,
		ObjectiveNleInterface &
	)

Member Function Documentation

◆ lnsrch_()

int SolverNleRecipes::lnsrch_	(	double	fold,
		double &	f,
		double	stpmax
	)

protected

Input:

Parameters

stpmax	limit to the length of the steps so that you do not try to evaluate the function in regions where it is undefined or subject to overflow.
fold	The previous value of the function
f	The new function value is returned in f.

Output: finds a new point x along the Direction p from xold where the function func has decreased sufficiently

Returns 0 on a normal exit. Returns 4 if on a plateau Returns 5 x is too close to xold (convergence on deltax) Returns 8 if NaN Returns 9 if unknown direction

In a minimization algorithm, this usually signals convergence and can be ignored. However, in a zero-finding algorithm the calling program should check whether the convergence is spurious.

◆ message()

std::string SolverNleRecipes::message ( int code )

overridevirtual

OK: 0 converged fine

warning level: -1 converged to a local minimum; try a different initial guess -4 objective function insensitive (plateau) -5 convergence on deltax; dubious convergence

error level: 2 exceeded maximum iterations limit 3 error when evaluating the residuals 6 singular matrix, type 1 7 singular matrix, type 2 8 NaN encountered

Implements SolverNleInterface.

◆ norm()

double SolverNleRecipes::norm ( const double * x )

overridevirtual

return energy-norm

Implements SolverNleInterface.

◆ resize()

void SolverNleRecipes::resize ( int n )

overridevirtual

sets the number of unknowns

Reimplemented from SolverNleInterface.

Reimplemented in SolverNleRecipesNumeric.

◆ setTolerances()

void SolverNleRecipes::setTolerances	(	double	alf,
		double	tolx,
		double	tolf,
		double	tolmin
	)

overridevirtual

Parameters

alf	Ensures sufficient decrease in function value
tolx	Convergence criterion on dx
tolf	convergence criterion on function values
tolmin	sets the criterion for deciding whether spurious convergence to a minimum of fmin has occurred

Implements SolverNleInterface.

◆ solve()

int SolverNleRecipes::solve ( void )

overridevirtual

Globally convergent Newton's method algorithm zero return code: solved ok negative return code: solved with warnings positive return code: unrecoverable error

Implements SolverNleInterface.

Member Data Documentation

◆ d_

std::vector<double> SolverNleRecipes::d_

protected

buffer to normalize Jacobian columns

◆ g_

double* SolverNleRecipes::g_

protected

◆ indx_

int* SolverNleRecipes::indx_

protected

◆ p_

double * SolverNleRecipes::p_

protected

◆ xold_

double * SolverNleRecipes::xold_

protected

The documentation for this class was generated from the following file:

SolverNleRecipes.h
