#include <components.h>

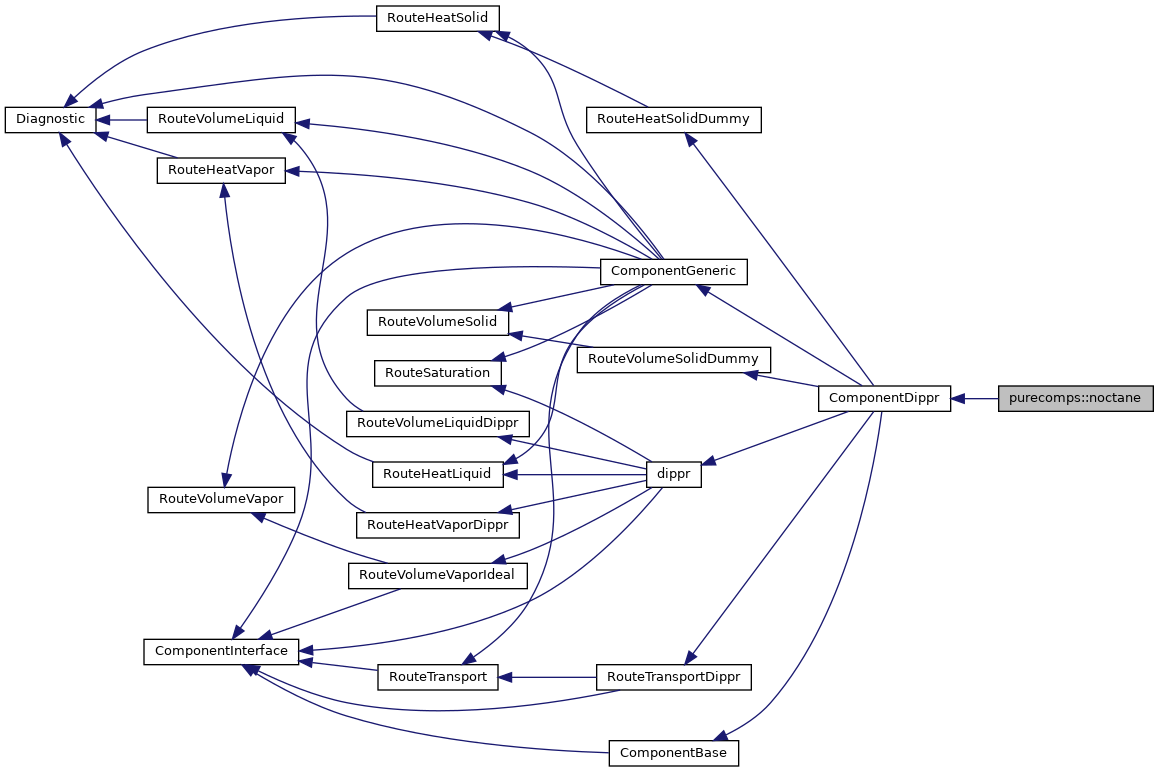

Inheritance diagram for purecomps::noctane:

[legend]

Public Member Functions
	noctane (std::string name="C8H18")

Public Member Functions inherited from ComponentDippr
	ComponentDippr (std::string name, const Value &mw, const Value &Pc, const Value &Tc, const Value &rhoc, const Value &diffvol, const Value &vb, const Value &dh0, const Value &dg0, const Value &dhvl, const Value &zc, const Value &omega, ParameterAntoine antoine, cpig_parameter cpig, dnldip_parameter dnldip, kldip_parameter kldip, kvdip_parameter kvdip, muldip_parameter muldip, muvdip_parameter muvdip, sigdip_parameter sigdip, ParameterHenry henry=0)

	~ComponentDippr (void)

Value	kvli (const Value &T, const Value &P) override

bool	isSolid (void) override

bool	isGas (void) override

Public Member Functions inherited from ComponentGeneric
	ComponentGeneric (std::string name)

virtual	~ComponentGeneric (void)

const std::string &	name (void) const

int	id (void) const

void	setid (int idd)

virtual Value	kvli (const Value &T, const Value &P)

virtual bool	isSolid (void)=0

virtual bool	isGas (void)

Public Member Functions inherited from Diagnostic
	Diagnostic (void)

void	setVerbosity (int verbosity)
	sets the verbosity level for this instance More...

int	verbosity (void) const

virtual const Value &	MW (void) const =0

virtual const Value &	Pc (void) const =0

virtual const Value &	Tc (void) const =0

virtual const Value	Vc (void) const =0

virtual const Value &	Zc (void) const =0

virtual const Value &	omega (void) const =0

virtual const Value &	diffvol (void) const =0

virtual const Value &	vb (void) const =0

virtual const Value &	dh0 (void) const =0

virtual const Value &	dg0 (void) const =0

Public Member Functions inherited from RouteSaturation
	RouteSaturation (void)

virtual	~RouteSaturation (void)

virtual Value	psat (const Value &T, double derT=nullptr, double der2T=nullptr)=0
	Vapour pressure of saturation. More...

virtual Value	dhvl (const Value &T, double *derT=nullptr)=0
	Vapour-Liquid enthalpy difference. More...

Public Member Functions inherited from RouteHeatVapor
	RouteHeatVapor (void)

virtual	~RouteHeatVapor (void)

virtual Value	hv (const Value &T, const Value &P)=0
	Molar vapor enthalpy, J/kmol. More...

virtual Value	sv (const Value &T, const Value &P)=0
	Molar vapor entropy, J/kmol/K. More...

Value	gv (const Value &T, const Value &P)
	Molar vapor Gibbs free energy, J/kmol. More...

virtual Value	cpv (const Value &T, const Value &P)=0
	Molar vapor cp, J/kmol/K. More...

Public Member Functions inherited from RouteHeatLiquid
	RouteHeatLiquid (void)

virtual	~RouteHeatLiquid (void)

virtual Value	hl (const Value &T, const Value &P)=0
	Molar liquid enthalpy, J/kmol. More...

virtual Value	sl (const Value &T, const Value &P)=0
	Molar liquid entropy, J/kmol/K. More...

Value	gl (const Value &T, const Value &P)
	Molar liquid Gibbs free energy, J/kmol. More...

virtual Value	cpl (const Value &T, const Value &P)=0
	Molar liquid cp, J/kmol/K. More...

Public Member Functions inherited from RouteHeatSolid
	RouteHeatSolid (void)

virtual	~RouteHeatSolid (void)

virtual Value	hs (const Value &T, const Value &P)=0
	Molar solid enthalpy, J/kmol. More...

virtual Value	ss (const Value &T, const Value &P)=0
	Molar solid entropy, J/kmol/K. More...

Value	gs (const Value &T, const Value &P)
	Molar solid Gibbs free energy, J/kmol. More...

virtual Value	cps (const Value &T, const Value &P)=0
	Molar solid cp, J/kmol/K. More...

Public Member Functions inherited from RouteTransport
	RouteTransport (void)

virtual	~RouteTransport (void)

virtual Value	muv (const Value &T, const Value &P)=0
	Vapour viscosity. More...

virtual Value	mul (const Value &T)=0
	Liquid viscosity. More...

virtual Value	kv (const Value &T, const Value &P)=0
	Vapour thermal conductivity. More...

virtual Value	kl (const Value &T)=0
	Liquid thermal conductivity. More...

virtual Value	sigma (const Value &T)=0
	Liquid surface tension. More...

Value	DG (const Value &T, const Value &P, const Value &mixMW, const Value &mixDiffvol)
	Gas diffusivity. More...

Value	DL (const Value &T)
	Liquid diffusivity. More...

Public Member Functions inherited from RouteVolumeVapor
	RouteVolumeVapor (void)

virtual	~RouteVolumeVapor (void)

virtual double	p (const double rho, const double T, double derRho=nullptr, double derT=nullptr)=0
	Vapor pressure, Pa. Requires the actual implementation of the volumetric properties. More...

Value	p (const Value &rrho, const Value &TT)
	Vapor pressure, Pa. More...

virtual Value	rhov (const Value &T, const Value &P, double derT=nullptr, double derP=nullptr)=0
	Molar vapor density, kmol/m3. More...

Public Member Functions inherited from RouteVolumeLiquid
	RouteVolumeLiquid (void)

virtual	~RouteVolumeLiquid (void)

virtual Value	rhol (const Value &T, const Value &P, double *derT=nullptr)=0
	Molar liquid density, kmol/m3. More...

virtual Value	rhos (const Value &T, const Value &P, double *derT=nullptr)=0
	Molar solid density, kmol/m3. More...

Public Member Functions inherited from ComponentBase
	ComponentBase (const Value &mw, const Value &Pc, const Value &Tc, const Value &rhoc, const Value &diffvol, const Value &vb, const Value &dh0, const Value &dg0, const Value &zc, const Value &omega)
	preferred constructor More...

	ComponentBase (const Value &mw)
	dummy constructor will set remaining parameters to dummy values More...

virtual	~ComponentBase (void)

const Value &	MW (void) const override

const Value &	Pc (void) const override

const Value &	Tc (void) const override

const Value &	Zc (void) const override

const Value	Vc (void) const override

const Value &	omega (void) const override

const Value &	diffvol (void) const override

const Value &	vb (void) const override

const Value &	dh0 (void) const override

const Value &	dg0 (void) const override

Public Member Functions inherited from RouteHeatSolidDummy
	RouteHeatSolidDummy (void)

Value	hs (const Value &T, const Value &) override
	Dummy solid enthalpy. More...

Value	ss (const Value &, const Value &) override
	Dummy solid entropy. More...

Value	cps (const Value &, const Value &) override
	Dummy solid cp. More...

Public Member Functions inherited from RouteVolumeSolidDummy
	RouteVolumeSolidDummy (void)

Value	rhos (const Value &, const Value &, double *=nullptr) override
	Molar solid density, kmol/m3. More...

Public Member Functions inherited from dippr
	dippr (const Value &dhvldp1, ParameterAntoine antoine, cpig_parameter cpig, dnldip_parameter dnldip)

Value	psat (const Value &T, double derT=nullptr, double der2T=nullptr) override
	Vapour pressure of saturation. More...

Value	dhvl (const Value &TT, double *derT=nullptr) override
	Vapour-Liquid enthalpy difference. More...

Value	hl (const Value &TT, const Value &P) override
	Molar liquid enthalpy, J/kmol. More...

Value	sl (const Value &TT, const Value &PP) override
	Molar liquid entropy, J/kmol/K. More...

Value	cpl (const Value &TT, const Value &P) override
	Molar liquid cp, J/kmol/K. More...

Public Member Functions inherited from RouteHeatVaporDippr
	RouteHeatVaporDippr (ComponentInterface *, cpig_parameter cpig)

void	sethost (ComponentInterface *host)

Value	hv (const Value &TT, const Value &PP) override
	Molar vapor enthalpy, J/kmol. More...

Value	sv (const Value &TT, const Value &PP) override
	Molar vapor entropy, J/kmol/K. More...

Value	cpv (const Value &TT, const Value &P) override
	Molar vapor cp, J/kmol/K. More...

Public Member Functions inherited from RouteVolumeLiquidDippr
void	sethost (ComponentInterface *host)

	RouteVolumeLiquidDippr (ComponentInterface *, dnldip_parameter dnldip)

Value	rhol (const Value &T, const Value &P, double *derT=nullptr) override
	Molar liquid density, kmol/m3. More...

Public Member Functions inherited from RouteVolumeVaporIdeal
	RouteVolumeVaporIdeal (void)

double	p (const double rho, const double T, double derRho=nullptr, double derT=nullptr) override
	Vapor pressure, Pa. Requires the actual implementation of the volumetric properties. More...

Value	rhov (const Value &T, const Value &P, double derT=nullptr, double derP=nullptr) override
	Molar vapor density, kmol/m3. More...

Public Member Functions inherited from RouteTransportDippr
	RouteTransportDippr (kldip_parameter kldip, kvdip_parameter kvdip, muldip_parameter muldip, muvdip_parameter muvdip, sigdip_parameter sigdip)

Value	muv (const Value &TT, const Value &P) override
	Vapour viscosity. More...

Value	mul (const Value &TT) override
	Liquid viscosity. More...

Value	kv (const Value &TT, const Value &P) override
	Vapour thermal conductivity. More...

Value	kl (const Value &TT) override
	Liquid thermal conductivity. More...

Value	sigma (const Value &TT) override
	Liquid surface tension. More...

Additional Inherited Members
Public Attributes inherited from RouteVolumeSolidDummy
double	rhos_

Protected Member Functions inherited from Diagnostic
virtual	~Diagnostic ()=default

Protected Member Functions inherited from ComponentInterface
virtual	~ComponentInterface ()=default

Protected Member Functions inherited from RouteTransport
	RouteTransport (const RouteTransport &)
	not implemented, making class non copyable More...

RouteTransport &	operator= (const RouteTransport &)
	not implemented, making class non copyable More...

Protected Member Functions inherited from RouteVolumeSolid
virtual	~RouteVolumeSolid ()=default

Protected Member Functions inherited from RouteVolumeSolidDummy
virtual	~RouteVolumeSolidDummy ()=default

Protected Attributes inherited from Diagnostic
int	verbosityInstance

Protected Attributes inherited from ComponentBase
Value	MW_
	molecular weight More...

Value	Pc_
	critical pressure, Pa More...

Value	Tc_
	critical temperature, K More...

Value	rhoc_
	molar density at the critical point, kmol/m3 More...

Value	diffvol_
	molar diffusivity parameter More...

Value	vb_
	molar volume at boiling point, m3/kmol More...

Value	zc_
	critical compressibility factor More...

Value	dh0_
	enthalpy of formation in the isIdeal gas phase at 1 atm 298.15 K, J/kmol More...

Value	dg0_
	Gibbs free energy of formation in the isIdeal gas phase at 1 atm 298.15 K, J/kmol. More...

Value	omega_
	acentric factor More...

Protected Attributes inherited from dippr
ParameterAntoine	antoine_

double	dhvldp1_

Constructor & Destructor Documentation

◆ noctane()

purecomps::noctane::noctane ( std::string name = "C8H18" )

explicit

The documentation for this class was generated from the following file:

components.h
