floating point variable More...

#include <Quantity.h>

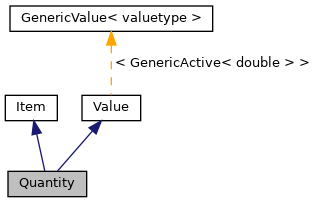

Inheritance diagram for Quantity:

[legend]

Public Types
typedef Value	ValueType
	for consistency with Type<T>::ValueType More...

Public Member Functions
	Quantity (const std::string &tag, const std::string &description, double value, const std::string &unit="", Persistent *parent=nullptr)
	main constructor More...

	Quantity (const std::string &tag, const std::string &description, double value, const UnitArray u, Persistent *parent=nullptr)

	Quantity (const std::string &tag, const std::string &description, const Value &value, Persistent *parent=nullptr)

Quantity &	operator= (const Quantity &other)
	copy assignment; does NOT copy tag / description / input / output More...

Quantity &	operator= (const Value &other)
	assign from Value More...

	Quantity (Quantity &&other)
	move constructor More...

Quantity &	operator= (Quantity &&other)
	move assignment; does NOT copy tag / description / input / output More...

const std::string &	type () const override

template<class T >
bool	operator!= (const T &rhs) const

template<class T >
bool	operator== (const T &rhs) const

template<class T >
bool	operator<= (const T &rhs) const

template<class T >
bool	operator>= (const T &rhs) const

template<class T >
bool	operator< (const T &rhs) const

template<class T >
bool	operator> (const T &rhs) const

Public Member Functions inherited from Item
	Item (const Item &other)
	copy constructor copies all elements but parent which is set to nullptr More...

Item &	operator= (const Item &other)
	copy assignment operator copies all elements but parent which is set to nullptr More...

	Item (const std::string &tag, const std::string &description, Persistent *parent)

	Item (Item &&other)
	move constructor More...

Item &	operator= (Item &&other)
	move assignment operator More...

virtual	~Item ()

const std::string &	tag () const

const std::string &	description () const

std::string	fullTag () const

const Persistent *	parent () const

virtual const std::string &	type () const =0

void	setTag (const std::string &tag)

void	setDescription (const std::string &description)

void	setWideTag (const std::wstring &tag)
	wide-character variant, More...

void	setWideDescription (const std::wstring &description)
	wide-character variant, More...

bool	operator!= (const Item &rhs) const

bool	operator== (const Item &rhs) const

Public Member Functions inherited from GenericValue< GenericActive< double > >
	GenericValue (void)
	Default constructor. More...

	GenericValue (const GenericValue< GenericActive< double > > &)
	Copy constructor (this class is copyable) More...

	GenericValue (double)
	Value-only constructor (no UOM) More...

	GenericValue (double v, const std::string s)

	GenericValue (const std::string)
	UOM-only constructor (no value) More...

	GenericValue (double v, const UnitArray u)

	GenericValue (GenericActive< double > v, const std::string s="")

	GenericValue (GenericActive< double > v, const UnitArray u)

virtual	~GenericValue (void)

const GenericActive< double > &	value (void) const

GenericActive< double > &	value_rw (void)

double	toDouble (void) const

double	toDouble (const std::string s) const
	returns a new object with unchanged value but zero derivatives More...

GenericValue< GenericActive< double > >	inactivated (void) const

GenericValue< GenericActive< double > >	operator- (void) const

GenericValue< GenericActive< double > >	operator- (const rhstype &rhs) const

GenericValue< GenericActive< double > >	operator- (const GenericValue< GenericActive< double > > &rhs) const

GenericValue< GenericActive< double > >	operator+ (const rhstype &rhs) const

GenericValue< GenericActive< double > >	operator+ (const GenericValue< GenericActive< double > > &) const

GenericValue< GenericActive< double > >	operator* (const rhstype &rhs) const

GenericValue< GenericActive< double > >	operator/ (const rhstype &rhs) const

bool	operator!= (const GenericValue< GenericActive< double > > &) const

bool	operator== (const GenericValue< GenericActive< double > > &) const

bool	operator<= (const GenericValue< GenericActive< double > > &) const

bool	operator>= (const GenericValue< GenericActive< double > > &) const

bool	operator< (const GenericValue< GenericActive< double > > &) const

bool	operator> (const GenericValue< GenericActive< double > > &) const

GenericValue< GenericActive< double > > &	operator= (double v)

GenericValue< GenericActive< double > > &	operator= (GenericActive< double > v)

GenericValue< GenericActive< double > > &	operator= (const GenericValue< GenericActive< double > > &a)

GenericValue< GenericActive< double > > &	operator+= (double v)

GenericValue< GenericActive< double > > &	operator+= (GenericActive< double > v)

GenericValue< GenericActive< double > > &	operator+= (const GenericValue< GenericActive< double > > &a)

GenericValue< GenericActive< double > > &	operator-= (double v)

GenericValue< GenericActive< double > > &	operator-= (GenericActive< double > v)

GenericValue< GenericActive< double > > &	operator-= (const GenericValue< GenericActive< double > > &a)

GenericValue< GenericActive< double > > &	operator*= (double rhs)

GenericValue< GenericActive< double > > &	operator*= (GenericActive< double > rhs)

GenericValue< GenericActive< double > > &	operator*= (const GenericValue< GenericActive< double > > &a)

GenericValue< GenericActive< double > > &	operator/= (double rhs)

GenericValue< GenericActive< double > > &	operator/= (GenericActive< double > rhs)

GenericValue< GenericActive< double > > &	operator/= (const GenericValue< GenericActive< double > > &a)

void	clear (void)
	set to zero More...

double	checkuom (const std::string &s) const

const bool &	input (void) const

const bool &	output (void) const

void	setOutput (void)
	Set the GenericValue as output parameter of a model. More...

void	setInput (void)
	Set the GenericValue as input parameter of a model. More...

void	unSetOutput (void)
	Reset the GenericValue as default no-output parameter of a model. More...

void	unSetInput (void)
	Reset the GenericValue as default no-input parameter of a model. More...

void	set (double v, const std::string s="")

void	set (GenericValue< GenericActive< double > >)
	Sets the GenericValue copying another GenericValue. More...

void	set (GenericActive< double >)
	Sets the GenericValue only with valuetype. More...

const UnitArray &	unit (void) const
	Returns the UnitArray of UOM. More...

void	divideUnit (int factor)
	divide all exponents of the unit by factor; used in sqrt and curt More...

void	forceUnit (const UnitArray &uom)
	Sets the unit of measurement (not recomended: use a proper constructor or setter) More...

std::string	getUnit (void) const
	Returns the UOM as string. More...

std::string	getUnittovector (void) const
	Returns the UOM as string. More...

Friends
class	Object

Additional Inherited Members
Protected Attributes inherited from Item
Persistent *	parent_
	pointer to the parent Persistent; set to this by the constructor if Item is self-standing or a root Persistent of a tree More...

Detailed Description

floating point variable

used for inputs and results

#include <libpf/persistency/Quantity.h>

Remarks

Warning: Thread safe:; Extendable:; Platform dependencies:

Member Typedef Documentation

◆ ValueType

typedef Value Quantity::ValueType

for consistency with Type<T>::ValueType

Constructor & Destructor Documentation

◆ Quantity() [1/4]

Quantity::Quantity	(	const std::string &	tag,
		const std::string &	description,
		double	value,
		const std::string &	unit = `""`,
		Persistent *	parent = `nullptr`
	)

main constructor

◆ Quantity() [2/4]

Quantity::Quantity	(	const std::string &	tag,
		const std::string &	description,
		double	value,
		const UnitArray	u,
		Persistent *	parent = `nullptr`
	)

◆ Quantity() [3/4]

Quantity::Quantity	(	const std::string &	tag,
		const std::string &	description,
		const Value &	value,
		Persistent *	parent = `nullptr`
	)

◆ Quantity() [4/4]

Quantity::Quantity ( Quantity && other )

move constructor

Member Function Documentation

◆ operator!=()

template<class T >

bool Quantity::operator!= ( const T & rhs ) const

inline

◆ operator<()

template<class T >

bool Quantity::operator< ( const T & rhs ) const

inline

◆ operator<=()

template<class T >

bool Quantity::operator<= ( const T & rhs ) const

inline

◆ operator=() [1/3]

Quantity & Quantity::operator= ( const Quantity & other )

copy assignment; does NOT copy tag / description / input / output

◆ operator=() [2/3]

Quantity & Quantity::operator= ( const Value & other )

assign from Value

◆ operator=() [3/3]

Quantity & Quantity::operator= ( Quantity && other )

move assignment; does NOT copy tag / description / input / output

◆ operator==()

template<class T >

bool Quantity::operator== ( const T & rhs ) const

inline

◆ operator>()

template<class T >

bool Quantity::operator> ( const T & rhs ) const

inline

◆ operator>=()

template<class T >

bool Quantity::operator>= ( const T & rhs ) const

inline

◆ type()

const std::string & Quantity::type ( ) const

overridevirtual

Returns: the C++ name of the class the instance belongs to

Note: it is the responsibility of the caller to not access this reference after the lifecycle of the Item

Implements Item.

Friends And Related Function Documentation

◆ Object

friend class Object

friend

The documentation for this class was generated from the following file:

Quantity.h
