QuantityMatrix Class Reference

real matrix variable More...

#include <QuantityMatrix.h>

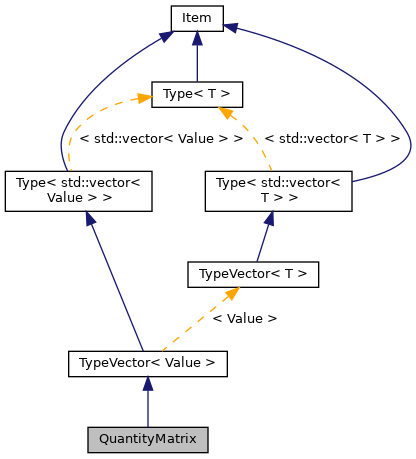

Inheritance diagram for QuantityMatrix:

Public Member Functions
	QuantityMatrix (const std::string &tag, const std::string &description, std::pair< int, int > size, const Value &value, Persistent *parent=nullptr)
	QuantityMatrix (QuantityMatrix &&other)
	move constructor More...
QuantityMatrix &	operator= (QuantityMatrix &&other)
	move assignment More...
const std::string &	type () const override
const Value &	operator() (std::size_t row, std::size_t column) const
Value &	operator() (std::size_t row, std::size_t column)
void	set (double v)
bool	input () const
bool	output () const
void	setInput ()
void	setOutput ()
const std::string	unit () const
void	resize (std::size_t count) override
	resizes the number of elements contained to count More...
Public Member Functions inherited from TypeVector< Value >
	TypeVector (const std::string &tag, const std::string &description, Persistent *parent, int count, const Value &value)
	main constructor More...
	TypeVector (TypeVector &&other)
	move constructor More...
TypeVector &	operator= (TypeVector &&other)
	move assignment More...
Value &	operator[] (std::size_t index)
const Value &	at (std::size_t index) const
std::size_t	size (void) const
virtual void	resize (std::size_t count)
	resizes the number of elements contained to count More...
void	set (const Value &value)
	sets the value for all elements More...
Public Member Functions inherited from Type< std::vector< Value > >
	Type (const std::string &tag, const std::string &description, Persistent *parent, const std::vector< Value > &value)
	main constructor More...
	Type (Type &&other)
	move constructor More...
Type &	operator= (Type &&other)
	move assignment More...
std::vector< Value > &	value (void)
	Type value getter. More...
const std::vector< Value > &	value (void) const
bool	operator!= (const Type &rhs) const
bool	operator== (const Type &rhs) const
Public Member Functions inherited from Item
	Item (const Item &other)
	copy constructor copies all elements but parent which is set to nullptr More...
Item &	operator= (const Item &other)
	copy assignment operator copies all elements but parent which is set to nullptr More...
	Item (const std::string &tag, const std::string &description, Persistent *parent)
	Item (Item &&other)
	move constructor More...
Item &	operator= (Item &&other)
	move assignment operator More...
virtual	~Item ()
const std::string &	tag () const
const std::string &	description () const
std::string	fullTag () const
const Persistent *	parent () const
virtual const std::string &	type () const =0
void	setTag (const std::string &tag)
void	setDescription (const std::string &description)
void	setWideTag (const std::wstring &tag)
	wide-character variant, More...
void	setWideDescription (const std::wstring &description)
	wide-character variant, More...
bool	operator!= (const Item &rhs) const
bool	operator== (const Item &rhs) const

Additional Inherited Members
Public Types inherited from Type< std::vector< Value > >
typedef std::vector< Value >	ValueType
	name the value type to make it possible for function templates acting on Type<T> to access T properties and methods More...
Protected Attributes inherited from Type< std::vector< Value > >
std::vector< Value >	value_
Protected Attributes inherited from Item
Persistent *	parent_
	pointer to the parent Persistent; set to this by the constructor if Item is self-standing or a root Persistent of a tree More...

Detailed Description

real matrix variable

used for matrices

#include <libpf/persistency/QuantityMatrix.h>

Remarks

empty matrices can only be created for adimensional Values

Warning

Thread safe:

Extendable:

Platform dependencies:

Constructor & Destructor Documentation

QuantityMatrix() [1/2]

QuantityMatrix::QuantityMatrix	(	const std::string &	tag,
		const std::string &	description,
		std::pair< int, int >	size,
		const Value &	value,
		Persistent *	parent = nullptr
	)

main constructor

Parameters

tag	UTF-8 encoded human-readable label, unique among siblings
description	UTF-8 encoded description
size	number of rows and columns
value	initialization value for all elements
parent	pointer to the parent Persistent; set to this by the constructor if Item is self-standing or a root Persistent of a tree

QuantityMatrix() [2/2]

QuantityMatrix::QuantityMatrix

(

QuantityMatrix &&

other

)

move constructor

Member Function Documentation

input()

bool QuantityMatrix::input

(

)

const

operator()() [1/2]

Value & QuantityMatrix::operator()	(	std::size_t	row,
		std::size_t	column
	)

Returns

a reference to the element at the supplied row and column

Parameters

row	row index of element to retrieve, 0-base
column	column index of element to retrieve, 0-base

Exceptions

ErrorRunTime

if indices are outside range

operator()() [2/2]

const Value & QuantityMatrix::operator()	(	std::size_t	row,
		std::size_t	column
	)		const

Returns

a const reference to the element at the supplied row and column

Parameters

row	row index of element to retrieve, 0-base
column	column index of element to retrieve, 0-base

Exceptions

ErrorRunTime

if indices are outside range

operator=()

QuantityMatrix & QuantityMatrix::operator=

(

QuantityMatrix &&

other

)

move assignment

output()

bool QuantityMatrix::output

(

)

const

resize()

void QuantityMatrix::resize ( std::size_t  count )

overridevirtual

resizes the number of elements contained to count

Reimplemented from TypeVector< Value >.

set()

void QuantityMatrix::set ( double  v )

inline

setInput()

void QuantityMatrix::setInput

(

)

setOutput()

void QuantityMatrix::setOutput

(

)

type()

const std::string & QuantityMatrix::type ( ) const

overridevirtual

Returns

the C++ name of the class the instance belongs to

Note

it is the responsibility of the caller to not access this reference after the lifecycle of the Item

Implements Item.

unit()

const std::string QuantityMatrix::unit

(

)

const

---

The documentation for this class was generated from the following file:

• QuantityMatrix.h
