#include <FlashVl.h>

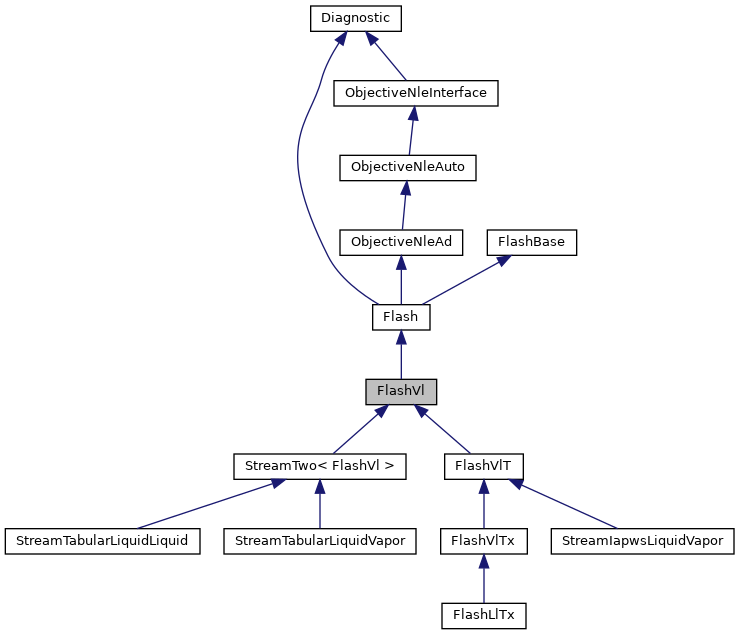

Inheritance diagram for FlashVl:

[legend]

Public Member Functions
	FlashVl (void)

Value	calculateResidualsRrg (void)
	assumes x_, y_, zk_ and kz_ More...

const Value &	Fraction (Libpf::Utility::PhaseIndex p, bool clip=false) const override
	during Flash iterations use this function to get the actual estimate of the fraction of phase p More...

Vector	X (Libpf::Utility::PhaseIndex p) const override

const Value &	Sumx (Libpf::Utility::PhaseIndex p) const override

void	estimate (const Value &Pres, const Value &Temp) override
	override Flash to call fillkvl More...

void	hardclipalfa (Value &alfa)
	clip alfa between zero and one More...

void	setmidalfa (void)
	set alfa midway between alfamin_ and alfamax_ More...

void	prepare_Flash_residuals (void) override

const Value &	kvl (int i) const

Public Member Functions inherited from Flash
	Flash (void)

int	niter (void) const override
	return Flash iterations More...

void	prepare_Flash_residuals (void) override

Value	calculateResidualsPressure (void)

virtual Value	calculateResidualsFlashMode (void)

virtual void	clip_ (void)

int	calculateResiduals (std::vector< Value > &y, uint32_t offset) override

void	estimate (const Value &Pres, const Value &Temp) override

const Value &	Fraction (Libpf::Utility::PhaseIndex p, bool clip) const override
	during Flash iterations use this function to get the actual estimate of the fraction of phase p More...

Vector	X (Libpf::Utility::PhaseIndex p) const override

const Value &	Sumx (Libpf::Utility::PhaseIndex p) const override

void	estimateEquilibrium (const Value &Pres, const Value &Temp) override
	estimate equilibrium-related unknowns More...

SolverNleInterface *	solver (void) override

bool	converged (void) const override
	returns true if the flash has been solved successfully, More...

Public Member Functions inherited from ObjectiveNleAd
	ObjectiveNleAd (std::string t)
	constructor More...

double	xmin (unsigned int i)
	return the lower bound on unknown i More...

double	xmax (unsigned int i)
	return the upper bound on unknown i More...

unsigned int	size (void) const override
	returns the current size of the problem More...

void	scalex (double *x) override
	transforms the vector of "real" variables x by applying the scaling More...

void	unscalex (double *x) override
	transforms back the vector of scaled variables x by applying the unscaling More...

void	operator() (double , double , Jacobian *J) override
	implements the () operator by calling calculateResiduals; derived class may override it More...

void	addUnknown (Value *x, Scaler scaler, const std::string &tag)

void	changeUnknown (unsigned int i, Value *x, Scaler scaler, const std::string &tag)
	change the i-th unknown More...

void	addObjectiveFunction (ObjectiveNleAd &of)
	append the remote objective function More...

Public Member Functions inherited from ObjectiveNleAuto
	ObjectiveNleAuto (std::string t)
	constructor More...

virtual unsigned int	size (void) const
	returns the current size of the problem More...

bool	init (double *x)

void	setValue (unsigned int i, double x)
	copies the value for the i-th unknown from x in the Value pointed to, without altering the derivatives More...

void	copyresults (double *x)
	copies the unknown values from the x vector into the Values pointed to More...

void	inactivate (void)
	inactivates all unknowns More...

void	clearderivatives (void)
	clears the derivative information for all unknowns without setting to inactive More...

void	setActive (unsigned int i)
	activates the i-th unknown More...

void	scalex (double *) override
	transforms the vector of "real" variables x by applying the scaling More...

void	unscalex (double *x) override
	transforms back the vector of scaled variables x by applying the unscaling More...

void	operator() (double , double , Jacobian *J) override
	implements the () operator by calling calculateResiduals; derived class may override it More...

void	setx (unsigned int i, Value &x)
	sets the i-th unknown to x More...

const Value &	unknown (unsigned int i) const
	returns a reference to the i-th unknown More...

const std::string &	unknownTag (unsigned int i) const
	returns a reference to the tag of the i-th unknown More...

double	xmin (unsigned int i)
	return the lower bound on unknown i More...

double	xmax (unsigned int i)
	return the upper bound on unknown i More...

void	print (void) const
	lists unknowns More...

const std::string &	tagof (void) const
	returns the tag of the instance More...

void	settagof (std::string t)
	sets the tag of the instance More...

void	appendtagof (const std::string &t)
	appends to the tag of the instance More...

int	zero_residuals (std::vector< Value > &y, uint32_t offset)

virtual int	calculateResiduals (std::vector< Value > &y, uint32_t offset)=0

void	addUnknown (Value *x, const std::string &tag)

void	changeUnknown (unsigned int i, Value *x, const std::string &tag)
	change the i-th unknown More...

Public Member Functions inherited from ObjectiveNleInterface
	ObjectiveNleInterface (void)

virtual void	operator() (double x, double y, Jacobian *J)=0
	computes the objective function vector y at the point x and optionally the Jacobian J More...

virtual void	scalex (double *x)=0
	transforms the vector of "real" variables x by applying the scaling More...

virtual void	unscalex (double *x)=0
	transforms back the vector of scaled variables x by applying the unscaling More...

Public Member Functions inherited from Diagnostic
	Diagnostic (void)

void	setVerbosity (int verbosity)
	sets the verbosity level for this instance More...

int	verbosity (void) const

Public Member Functions inherited from FlashBase
	FlashBase (void)

void	setIdeal (bool i)

bool	isIdeal (void)

virtual SolverNleInterface *	solver (void)=0

virtual int	niter (void) const =0
	return Flash iterations More...

virtual void	estimate (const Value &Pres, const Value &Temp)=0

const Value &	Temperature (void) const

const Value &	Pressure (void) const

virtual const Value &	Fraction (Libpf::Utility::PhaseIndex p, bool clip=false) const =0
	during Flash iterations use this function to get the actual estimate of the fraction of phase p More...

virtual Vector	X (Libpf::Utility::PhaseIndex p) const =0

virtual const Value &	Sumx (Libpf::Utility::PhaseIndex p) const =0

virtual bool	converged (void) const =0
	returns true if the flash has been solved successfully, More...

Static Public Attributes
static bool	drive_

Protected Member Functions
void	computealfaminmax (const Vector &z)

virtual void	fillkvl (const Value &Pres, const Value &Temp, bool force)

void	calculateSplit (const Vector &z)
	fill in x_, y_, zk_, kz_ sumx_, sumy_ More...

void	setup_ (std::vector< Value * > pbeta_, std::vector< const double * > pbetamin_, std::vector< const double * > pbetamax_) override
	override Flash to add alfa_ as unknown More...

const Value &	zk (void) const

const Value &	kz (void) const

Protected Member Functions inherited from Flash
void	setFlash_ (const Libpf::Utility::FlashMode &fm, const Value &x, const Value &y, bool strict=true) override
	Set the stream's state variables and the Flash. More...

int	solveFlash (bool simultaneous, bool skip) override

std::string	message (int code) override

void	setup_ (std::vector< Value * > pbeta_, std::vector< const double * > pbetamin_, std::vector< const double * > pbetamax_) override

void	calculateInertSolids (const std::vector< Quantity > &totalx, std::vector< Quantity > &inertx, MutableVector fluidx, Value &inertfraction, Value &fluidfraction)

Protected Member Functions inherited from ObjectiveNleAd
void	prepare_ (double x, Jacobian J) override
	uscales x (unknowns) values from calling function and puts them in x_ Quantities More...

void	packResults_ (double x, double y, Jacobian *J)

	~ObjectiveNleAd ()

Protected Member Functions inherited from ObjectiveNleAuto
	~ObjectiveNleAuto ()

Protected Member Functions inherited from ObjectiveNleInterface
	~ObjectiveNleInterface ()

Protected Member Functions inherited from Diagnostic
virtual	~Diagnostic ()=default

Protected Member Functions inherited from FlashBase
virtual	~FlashBase ()=default

virtual const Value &	calculateTotalP (const Value &rho) const =0

virtual const Value &	calculateTotalRho (void) const =0
	calculates total molar density for all phases in kmol/m3 More...

virtual const Value &	calculateTotalH (void) const =0
	calculates molar enthalpy for all phases in J/kmol based on current values of the hidden unknowns More...

virtual const Value &	calculateTotalS (void) const =0
	calculates molar entropy for all phases in J/kmol/K based on current values of the hidden unknowns More...

virtual void	prepare_residuals (void)=0

virtual void	prepare_Flash_residuals (void)=0

virtual int	calculateResidualsEos (std::vector< Value > &y, uint32_t offset)=0

virtual void	estimateEos (const Value &Pres, const Value &Temp)=0
	estimate eos roots-related unknowns More...

virtual int	calculateResidualsEquilibrium (std::vector< Value > &y, uint32_t offset)=0

virtual void	estimateEquilibrium (const Value &Pres, const Value &Temp)=0
	estimate equilibrium-related unknowns More...

virtual void	setFlash_ (const Libpf::Utility::FlashMode &fm, const Value &x, const Value &y, bool strict=true)=0
	Set the stream's state variables and the Flash. More...

virtual int	solveFlash (bool simultaneous, bool skip)=0

virtual std::string	message (int code)=0

virtual void	setup_ (std::vector< Value * > pbeta_, std::vector< const double * > pbetamin_, std::vector< const double * > pbetamax_)=0

Protected Attributes
std::vector< Value >	kVL_
	equilibrium factors More...

Libpf::Utility::PhaseIndex	firstpid_
	PhaseIndex of the first phase (the vapor phase) More...

Libpf::Utility::PhaseIndex	secondpid_
	PhaseIndex of the second phase (the liquid phase) More...

Value	alfac1_
	alfa complement to one More...

Value	sumy_
	sum of vapor phase molar fractions More...

Value	alfa_
	phase fraction, unknown between 0 and 1 More...

Value	alfaClipped_
	clipped alfa More...

std::vector< Value >	x_
	liquid phase molar fractions More...

std::vector< Value >	y_
	vapor phase molar fractions More...

Protected Attributes inherited from Flash
Value	sumx_
	sum of molar fractions, or liquid phase molar fractions for multiphase derived classes More...

std::vector< Quantity > *	remotex_

SolverNle	NLEFlash_
	Newton solver for the Flash. More...

Protected Attributes inherited from ObjectiveNleAd
std::vector< Scaler >	scaler_
	provide scaling and unscaling More...

Protected Attributes inherited from ObjectiveNleAuto
std::vector< Value >	residuals
	Residuals. More...

Protected Attributes inherited from Diagnostic
int	verbosityInstance

Protected Attributes inherited from FlashBase
Libpf::Utility::FlashMode	fm_

bool	zero_residuals_
	used to skip Flash residuals calculations if stream is empty More...

Value	T_
	Temperature, unknown. More...

Value	P_
	Pressure, unknown. More...

Value	Pset_
	specified pressure, Pa More...

Value	Tset_
	specified temperature, K More...

Value	Hset_
	specified molar enthalpy, J/kmol More...

Value	Sset_
	specified molar entropy, J/(kmol*K) More...

Value	rhoset_
	specified molar density, kmol/m3 More...

Additional Inherited Members
Public Attributes inherited from ObjectiveNleInterface
int	verbosityLocal

Detailed Description

Two-phase vapor-liquid Flash
Supports only constant kVL coefficients, independent from temperature and phase composition Possible flash option:

PT
DT
KT
PH
DH
KH
PS
DS
KS

#include <libpf/streams/FlashVl.h>

Remarks: XA Flashes are not possible because lacking a temperature / kVL relationship
the temperature can not be determined from the vapor fraction

Warning: Thread safe:; Extendable:; Platform dependencies:

Constructor & Destructor Documentation

◆ FlashVl()

FlashVl::FlashVl ( void )

Member Function Documentation

◆ calculateResidualsRrg()

Value FlashVl::calculateResidualsRrg ( void )

assumes x_, y_, zk_ and kz_

◆ calculateSplit()

void FlashVl::calculateSplit ( const Vector & z )

protected

fill in x_, y_, zk_, kz_ sumx_, sumy_

◆ computealfaminmax()

void FlashVl::computealfaminmax ( const Vector & z )

protected

◆ estimate()

void FlashVl::estimate	(	const Value &	Pres,
		const Value &	Temp
	)

overridevirtual

override Flash to call fillkvl

Reimplemented from Flash.

◆ fillkvl()

virtual void FlashVl::fillkvl	(	const Value &	Pres,
		const Value &	Temp,
		bool	force
	)

inlineprotectedvirtual

fill in the kVL_; if !force, will skip the calculation for components absent from both vapor and liquid phase

Parameters

Pres	pressure
Temp	temperature
force	forces calculation even for components absent from both vapor and liquid phase

Reimplemented in FlashLlTx, FlashVlT, StreamTabularLiquidLiquid, and StreamTabularLiquidVapor.

◆ Fraction()

const Value & FlashVl::Fraction	(	Libpf::Utility::PhaseIndex	p,
		bool	clip = `false`
	)		const

overridevirtual

during Flash iterations use this function to get the actual estimate of the fraction of phase p

Parameters

p	index of the phase
clip	whether to clip the fraction between 0 and 1

Reimplemented from Flash.

◆ hardclipalfa()

void FlashVl::hardclipalfa ( Value & alfa )

clip alfa between zero and one

◆ kvl()

const Value & FlashVl::kvl ( int i ) const

Returns: the equilibrium factor for component i

◆ kz()

const Value & FlashVl::kz ( void ) const

protected

◆ prepare_Flash_residuals()

void FlashVl::prepare_Flash_residuals ( void )

inlineoverridevirtual

to be called before evaluating the residuals; implement in Flash or its subclasses; put any stream-specific initialization stuff here

Reimplemented from Flash.

Reimplemented in FlashVlT, and FlashVlTx.

◆ setmidalfa()

void FlashVl::setmidalfa ( void )

set alfa midway between alfamin_ and alfamax_

◆ setup_()

void FlashVl::setup_	(	std::vector< Value * >	pbeta_,
		std::vector< const double * >	pbetamin_,
		std::vector< const double * >	pbetamax_
	)

overrideprotectedvirtual

override Flash to add alfa_ as unknown

Reimplemented from Flash.

Reimplemented in FlashVlTx.

◆ Sumx()

const Value & FlashVl::Sumx ( Libpf::Utility::PhaseIndex p ) const

overridevirtual

during Flash iterations use this function to get the actual estimate of the sum of molar fractions for phase p

Reimplemented from Flash.

◆ X()

Vector FlashVl::X ( Libpf::Utility::PhaseIndex p ) const

overridevirtual

during Flash iterations use this function to get the actual estimate of the molar fractions for phase p

Reimplemented from Flash.

◆ zk()

const Value & FlashVl::zk ( void ) const

protected

Member Data Documentation

◆ alfa_

Value FlashVl::alfa_

protected

phase fraction, unknown between 0 and 1

◆ alfac1_

Value FlashVl::alfac1_

mutableprotected

alfa complement to one

◆ alfaClipped_

Value FlashVl::alfaClipped_

protected

clipped alfa

◆ drive_

bool FlashVl::drive_

static

whether RRG is driven outside unfeasible range if alfa_ outside [alfamin_, alfamax_]

◆ firstpid_

Libpf::Utility::PhaseIndex FlashVl::firstpid_

protected

PhaseIndex of the first phase (the vapor phase)

◆ kVL_

std::vector<Value> FlashVl::kVL_

protected

equilibrium factors

◆ secondpid_

Libpf::Utility::PhaseIndex FlashVl::secondpid_

protected

PhaseIndex of the second phase (the liquid phase)

◆ sumy_

Value FlashVl::sumy_

protected

sum of vapor phase molar fractions

◆ x_

std::vector<Value> FlashVl::x_

protected

liquid phase molar fractions

◆ y_

std::vector<Value> FlashVl::y_

protected

vapor phase molar fractions

The documentation for this class was generated from the following file:

FlashVl.h

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ FlashVl()

Member Function Documentation

◆ calculateResidualsRrg()

◆ calculateSplit()

◆ computealfaminmax()

◆ estimate()

◆ fillkvl()

◆ Fraction()

◆ hardclipalfa()

◆ kvl()

◆ kz()

◆ prepare_Flash_residuals()

◆ setmidalfa()

◆ setup_()

◆ Sumx()

◆ X()

◆ zk()

Member Data Documentation

◆ alfa_

◆ alfac1_

◆ alfaClipped_

◆ drive_

◆ firstpid_

◆ kVL_

◆ secondpid_

◆ sumy_

◆ x_

◆ y_
