Phase model interface mass-based only. More...

#include <Mass.h>

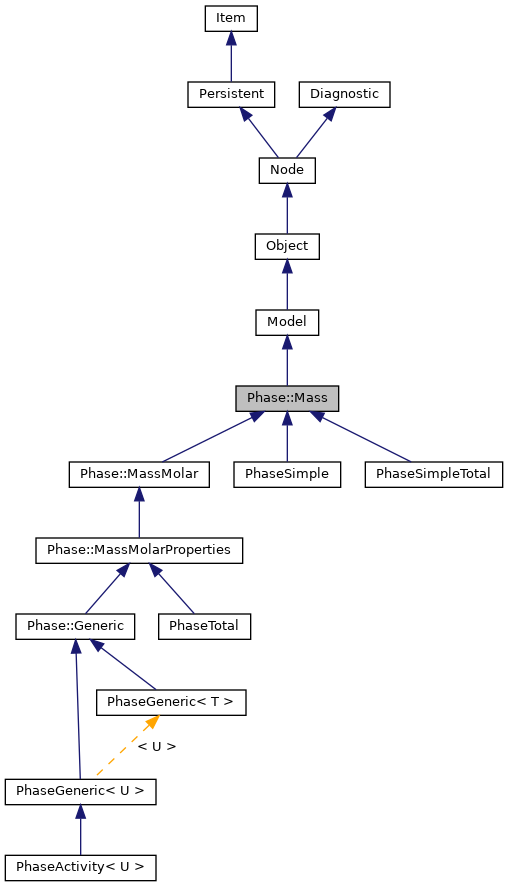

Inheritance diagram for Phase::Mass:

[legend]

Public Member Functions
	Mass (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency persistency=nullptr, Persistent parent=nullptr, Persistent *root=nullptr)

	GENERATE_COPY_MOVE_BASE (Mass)

	QUANTITY (fraction, "phase fraction", one, "")

	QUANTITY (mdot, "mass flow", 10000.0, "kg/h")

virtual void	setPhaseType (Libpf::Utility::PhaseType pt)
	Set the phase type to pt (Vapor, Liquid, Solid) More...

Libpf::Utility::PhaseType	phaseType (void) const
	Returns the phase type. More...

void	setPhaseIndex (Libpf::Utility::PhaseIndex pi, int ordinal=0)
	Set the PhaseIndex pi plus ordinal. More...

Libpf::Utility::PhaseIndex	phaseIndex (void) const
	Returns the phase index. More...

virtual Libpf::Utility::MassBalanceMode	representation (void) const
	return default flow base More...

virtual Value &	totalFlow (void)
	return total flow in the default flow base More...

virtual Value &	flow (int i)
	return flow for component i in the default flow base More...

virtual const Value &	flow (int i) const
	return flow for component i in the default flow base More...

virtual Value &	frac (int i)
	return fraction for component i in the default flow base More...

virtual std::vector< Quantity > &	fracs (void)
	return reference to the fractions for all components in the default flow base More...

virtual void	calculateProperties (const Value &Pres, const Value &Temp, bool writeH=true)

virtual void	calculateX (const Libpf::Utility::MassBalanceMode &mb)

virtual void	setEquimolar (const Libpf::Utility::MassBalanceMode &mb)
	sets equimolar composition, based on the supplied mass balance mode More...

virtual void	setEquimass (const Libpf::Utility::MassBalanceMode &mb)
	sets equimass composition, based on the supplied mass balance mode More...

virtual void	setPure (const Libpf::Utility::MassBalanceMode &mb, int i)
	sets phase composition to pure in component i, based on the supplied mass balance mode More...

virtual void	setImpure (const Libpf::Utility::MassBalanceMode &mb, int i, double eps)
	sets phase composition to almost pure, based on the supplied mass balance mode More...

virtual void	setEquimolarNoKey (const Libpf::Utility::MassBalanceMode &mb, int i)
	sets equimolar composition except for component i, based on the supplied mass balance mode More...

virtual void	setEquimassNoKey (const Libpf::Utility::MassBalanceMode &mb, int i)
	sets equimass composition except for component i, based on the supplied mass balance mode More...

void	setSymmetrical (const Libpf::Utility::MassBalanceMode &mb, double eps)
	sets phase composition to a symmetrical distribution, based on the supplied mass balance mode; More...

void	setAsymmetrical (const Libpf::Utility::MassBalanceMode &mb, bool increasing, double eps)
	sets phase composition to an asymmetrical distribution, based on the supplied mass balance mode; More...

virtual bool	isPure (void)

virtual void	clearComposition (const Libpf::Utility::MassBalanceMode &mb)

virtual Mass &	operator+= (const Mass &rhs)
	mixes *this with the phase rhs More...

virtual Mass &	operator-= (const Mass &rhs)
	subtracts rhs from *this More...

virtual Mass &	operator*= (const Value &factor)
	scales the phase flows by factor More...

Mass &	addComponents (const Mass &rhs, int istart, int iend)

Mass &	subtractComponents (const Mass &rhs, int istart, int iend)

ObjectiveNleAd *	objectiveFunction (void) override
	returns a pointer to the model's objective function More...

void	calculate (int level=0) override

void	setup (void) override
	performs initializations required immediately before solution More...

Libpf::Utility::Category	category (void) const override
	return model Category More...

Public Member Functions inherited from Model
	Model (Libpf::Persistency::Defaults defaults, uint32_t id, Persistency persistency, Persistent parent, Persistent *root)

	INTEGER (nCalculations, "Number of times the model has been calculated", 0)

	STRINGVECTOR (errors, "Errors from the last computation", 0, "")

	STRINGVECTOR (warnings, "Warnings from the last computation", 0, "")

bool	isPristine (void) const

void	unSetInput (void)
	wipes out all tags marked as inputs More...

void	reportMessages (void)
	recursively collect status of all sub-objects and report to parent More...

void	resetErrors (void)

void	setWarning (std::string s)
	send new warning message to local queue More...

void	setError (std::string s)
	send new error message to local queue More...

void	reportWarning (std::string s)
	propagate warning message from sub-object to local queue More...

void	reportError (std::string s)
	propagate error message from sub-object to local queue More...

void	setCalculated (void)
	increments nCalculations counter and unsets pristinity More...

void	setPristineRecursive (void)
	force next calculation to restart as if the model had never been calculated during this runtime session, also for all contained objects More...

void	setPristine (void)
	force next calculation to restart as if the model had never been calculated during this runtime session More...

void	setRunTime (double t)
	set the run time More...

virtual Libpf::Utility::Category	category (void) const =0
	return model Category More...

virtual void	calculate (int level=0)=0

virtual void	setup (void)=0
	performs initializations required immediately before solution More...

virtual int	maximumIterations (void)
	returns default maximum iterations for main computation; defaults to 200 More...

virtual void	initializeNonPersistents (void)=0
	estimates hidden, non-persistent unknowns from the current results More...

virtual ObjectiveNleAd *	objectiveFunction (void)=0
	returns a pointer to the model's objective function More...

std::ostream &	print (std::ostream &os, bool strings, bool quantities, bool integers, bool recursive) const

std::ostream &	printFull (std::ostream &) const
	print the model quantities, including derivative info, in text format to os More...

void	printHtml (const char *dir) const

virtual void	printSvg (const char *fileName, bool tiny, bool raster, int offset)

void	printSvgAll (const char *dir, bool tiny, bool raster, int offset, std::vector< std::string > &list)
	Recursively output the model and all descendants in SVG format as separate id.SVG files in the directory dir. More...

virtual void	printXml (const char dir, Model precedingSibling, Model *followingSibling) const

void	printXmlToc (std::ofstream &toc, int indent) const

void	printOds (std::ofstream &ods) const

Public Member Functions inherited from Object
	Object (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency persistency=nullptr, Persistent parent=nullptr, Persistent *root=nullptr)

Libpf::Persistency::Defaults	defaults (void) const

std::ostream &	printJson (std::ostream &os, int level=0) const override
	print Node in JSON format More...

void	readVariables (Persistency *persistency) override
	reads Q, QV and QM from persistency More...

void	readParameters (Persistency *persistency) override
	reads I, IV, S and SV from persistency More...

Node &	operator= (const Node &) override
	copy assignment operator More...

Node &	operator= (Node &&other) override
	move assignment More...

	~Object (void)

const std::string &	type (void) const override

Object &	at (const std::string &fullRelativeTag)

const Object &	at (const std::string &fullRelativeTag) const

Object &	at (const std::string &fullRelativeTag, int index)

const Value &	Q (const std::string &tag) const

const Value &	Q (const std::string &tag, int index) const

const Value &	Q (const std::string &tag, int row, int column) const

Value &	Q (const std::string &tag)

Value &	Q (const std::string &tag, int index)

Value &	Q (const std::string &tag, int row, int column)

const Value &	Q (const std::string &tag, std::string componentName) const

Value &	Q (const std::string &tag, std::string componentName)

const Value &	Q (const std::string &tag, int index, std::string componentName) const

Value &	Q (const std::string &tag, int index, std::string componentName)

const int &	I (const std::string &tag) const

const int &	I (const std::string &tag, int index) const

int &	I (const std::string &tag)

int &	I (const std::string &tag, int index)

const std::string &	S (const std::string &tag) const

const std::string &	S (const std::string &tag, int index) const

std::string &	S (const std::string &tag)

std::string &	S (const std::string &tag, int index)

bool	operator!= (const Object &rhs) const

bool	operator== (const Object &rhs) const

bool	compareParameters (const Object &rhs) const

bool	existsI (const std::string &tag) const

bool	existsS (const std::string &tag) const

bool	existsQ (const std::string &tag) const

void	push (void) const
	store the current status of the object and all its sub-objects in the last-in-first-out queue of real variables values More...

void	pop (void)
	restore the status of the object and all its sub-objects from the last-in-first-out queue of real variables values More...

void	clear (void) const
	clear the last-in-first-out queue of real variables values used for storing and retrieving the status More...

const RangeQuantities	quantities (void)

const ConstRangeQuantities	quantities (void) const

Public Member Functions inherited from Node
	Node (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency persistency=nullptr, Persistent parent=nullptr, Persistent *root=nullptr)

	Node (const Node &other)
	copy constructor More...

	Node (Node &&other)
	move constructor More...

virtual std::unique_ptr< Node >	clone (void) const

virtual Node &	operator= (const Node &other)
	copy assignment operator copies all elements but root which is set to nullptr More...

virtual Node &	operator= (Node &&other)
	move assignment More...

	~Node ()

int	insert (Persistency *persistency) const override

int	update (Persistency *persistency) const override

void	restore (Persistency *persistency) override

void	remove (Persistency *persistency) const override

uint32_t	rootId (void) const override

uint32_t	range (void) const override

uint32_t	getId (void) override
	returns the next available id and increments the internal counter More...

const std::string &	type (void) const override

virtual std::ostream &	printJson (std::ostream &os, int level=0) const
	print Node in JSON format More...

Node &	addChild (std::string type, uint32_t id, Persistency *persistency)

Node &	addChild (std::string type, Libpf::Persistency::Defaults defaults)

Node &	addChild (const Node &child)

Node &	addChild (std::unique_ptr< Node > child)

std::unique_ptr< Node >	prune (const std::string &tag)

const Node &	child (const std::string &tag) const

Node &	at (const std::string &fullRelativeTag)

const Node &	at (const std::string &fullRelativeTag) const

uint32_t	descendants (void) const

Persistent *	root (void) const

void	renameChild (const std::string &oldName, const std::string &newName)

bool	existsChild (std::string tag) const

bool	exists (uint32_t id)

Node &	search (uint32_t id)

bool	operator!= (const Node &rhs) const

bool	operator== (const Node &rhs) const

virtual void	readVariables (Persistency *)
	reads Q, QV and QM from persistency More...

virtual void	readParameters (Persistency *)
	reads I, IV, S and SV from persistency More...

bool	isRestored (void) const
	return whether the Node has just been retrieved from persistent storage More...

void	setIcon (std::string icon, double width, double height)

bool	hasIcon (void) const

std::string	iconName (bool raster) const

double	iconWidth (void) const

double	iconHeight (void) const

const Range	children (void)

const ConstRange	children (void) const

Public Member Functions inherited from Persistent
	Persistent (const std::string &tag, const std::string &description, Persistent *parent, uint32_t id)
	main constructor More...

	Persistent (const Persistent &)
	copy constructor More...

Persistent &	operator= (const Persistent &)
	copy assignment More...

	Persistent (Persistent &&other)
	move constructor More...

Persistent &	operator= (Persistent &&other)
	move assignment More...

	~Persistent (void)

uint32_t	id (void) const

std::string	uuid (void) const

uint32_t	parentId (void) const

virtual uint32_t	rootId (void) const =0

virtual uint32_t	range (void) const =0

virtual uint32_t	getId (void)=0
	returns the next available id and increments the internal counter More...

double	created_at (void) const

double	updated_at (void) const

void	updated_at (double u) const

virtual int	insert (Persistency *persistency) const =0

virtual int	update (Persistency *persistency) const =0

virtual void	restore (Persistency *persistency)=0

virtual void	remove (Persistency *persistency) const =0

Public Member Functions inherited from Item
	Item (const Item &other)
	copy constructor copies all elements but parent which is set to nullptr More...

Item &	operator= (const Item &other)
	copy assignment operator copies all elements but parent which is set to nullptr More...

	Item (const std::string &tag, const std::string &description, Persistent *parent)

	Item (Item &&other)
	move constructor More...

Item &	operator= (Item &&other)
	move assignment operator More...

virtual	~Item ()

const std::string &	tag () const

const std::string &	description () const

std::string	fullTag () const

const Persistent *	parent () const

virtual const std::string &	type () const =0

void	setTag (const std::string &tag)

void	setDescription (const std::string &description)

void	setWideTag (const std::wstring &tag)
	wide-character variant, More...

void	setWideDescription (const std::wstring &description)
	wide-character variant, More...

bool	operator!= (const Item &rhs) const

bool	operator== (const Item &rhs) const

Public Member Functions inherited from Diagnostic
	Diagnostic (void)

void	setVerbosity (int verbosity)
	sets the verbosity level for this instance More...

int	verbosity (void) const

Public Attributes
std::vector< Quantity >	w
	Mass fraction. More...

std::vector< Quantity >	mdotcomps
	Mass flow of each component. More...

Protected Member Functions
void	addVariables (void)

virtual void	calculateMw_ (void)
	assumes the phase has mdot and w[] filled in More...

virtual void	calculateM_ (void)
	assumes the phase has mdotcomps[] filled in More...

Protected Member Functions inherited from Model
void	printSvgXlink (std::ostream &svg, const std::string &link, double width, double height)

void	addComponentVectorVariable (std::vector< Quantity > &variable, const std::string &tag, const std::string &description, Quantity::ValueType value)

template<typename T >
void	addSubObjects (int verbosityFile, Libpf::Persistency::Defaults defaults, Persistency persistency, int count, const std::string &optionKey, const std::string &typeKey, const std::string &tagKey, const std::string &description, std::vector< T > &vector)

Protected Member Functions inherited from Object
int	retrieveInteger (const Libpf::Persistency::Defaults &defaults, uint32_t id, Persistency *persistency, std::string tag, int min, int max, int def=-1)

std::string	retrieveString (const Libpf::Persistency::Defaults &defaults, uint32_t id, Persistency *persistency, std::string tag, const std::string def)

template<class T >
void	addVariable (T &variable)

template<class T >
void	addVectorVariable (std::vector< T > &variable, const std::string &tag, const std::string &description, uint32_t size, typename T::ValueType value)

	Object (const Object &other)
	copy constructor More...

	Object (Object &&other)
	move constructor More...

Object &	operator= (const Object &)
	copy assignment operator More...

Object &	operator= (Object &&other)
	move assignment operator More...

Protected Member Functions inherited from Node
int	offset (void) const

Protected Member Functions inherited from Diagnostic
virtual	~Diagnostic ()=default

Additional Inherited Members
Protected Attributes inherited from Object
std::map< std::string, Integer * >	integers_
	collection of integer variables More...

std::map< std::string, IntegerVector * >	integerVectors_
	collection of integer variable vectors More...

std::map< std::string, Quantity * >	quantities_
	collection of real variables More...

std::map< std::string, QuantityVector * >	quantityVectors_
	collection of real variable vectors More...

std::map< std::string, QuantityMatrix * >	quantityMatrices_
	collection of real variable matrices More...

std::map< std::string, String * >	strings_
	collection of string variables More...

std::map< std::string, StringVector * >	stringVectors_
	collection of string variable vectors More...

Protected Attributes inherited from Node
std::map< std::string, std::unique_ptr< Node > >	children_
	the collection of direct descendants More...

Protected Attributes inherited from Item
Persistent *	parent_
	pointer to the parent Persistent; set to this by the constructor if Item is self-standing or a root Persistent of a tree More...

Protected Attributes inherited from Diagnostic
int	verbosityInstance

Detailed Description

Phase model interface mass-based only.

#include <libpf/phases/Mass.h>

Remarks

Warning: Requires the list of components to be populated before the construction; Thread safe:; Extendable:; Platform dependencies:

Constructor & Destructor Documentation

◆ Mass()

Phase::Mass::Mass	(	Libpf::Persistency::Defaults	defaults,
		uint32_t	id = `0`,
		Persistency *	persistency = `nullptr`,
		Persistent *	parent = `nullptr`,
		Persistent *	root = `nullptr`
	)

Member Function Documentation

◆ addComponents()

Mass & Phase::Mass::addComponents	(	const Mass &	rhs,
		int	istart,
		int	iend
	)

Parameters

rhs	phase whose component molar flows are added to the molar flows of *this
istart	start index of the subset of components to add
iend	end index of the subset of components to add

◆ addVariables()

void Phase::Mass::addVariables ( void )

protected

◆ calculate()

void Phase::Mass::calculate ( int level = 0 )

overridevirtual

calculates the model; implementations must call setCalculated

Parameters

level used for indenting, defaults to 0

Implements Model.

Reimplemented in Phase::MassMolar.

◆ calculateM_()

virtual void Phase::Mass::calculateM_ ( void )

protectedvirtual

assumes the phase has mdotcomps[] filled in

Reimplemented in Phase::MassMolar, and Phase::MassMolarProperties.

◆ calculateMw_()

virtual void Phase::Mass::calculateMw_ ( void )

protectedvirtual

assumes the phase has mdot and w[] filled in

Reimplemented in Phase::MassMolar, and Phase::MassMolarProperties.

◆ calculateProperties()

virtual void Phase::Mass::calculateProperties	(	const Value &	Pres,
		const Value &	Temp,
		bool	writeH = `true`
	)

virtual

Reimplemented in Phase::MassMolarProperties.

◆ calculateX()

virtual void Phase::Mass::calculateX ( const Libpf::Utility::MassBalanceMode & mb )

virtual

Reimplemented in Phase::MassMolar.

◆ category()

Libpf::Utility::Category Phase::Mass::category ( void ) const

overridevirtual

return model Category

Implements Model.

◆ clearComposition()

virtual void Phase::Mass::clearComposition ( const Libpf::Utility::MassBalanceMode & mb )

virtual

set to zero the composition of each component, based on the supplied mass balance mode

Parameters

mb	mass balance mode, one of: Mw total mass flow and mass composition of each component are fixed M mass flow of each component

Exceptions

if	the MassBalanceMode is unsupported

Note: does not set the flow to zero; does not change the default MassBalanceMode; does not recalculate the phase

Reimplemented in Phase::MassMolar.

◆ flow() [1/2]

virtual Value & Phase::Mass::flow ( int i )

virtual

return flow for component i in the default flow base

Reimplemented in Phase::MassMolar.

◆ flow() [2/2]

virtual const Value & Phase::Mass::flow ( int i ) const

virtual

return flow for component i in the default flow base

Reimplemented in Phase::MassMolar.

◆ frac()

virtual Value & Phase::Mass::frac ( int i )

virtual

return fraction for component i in the default flow base

Reimplemented in Phase::MassMolar.

◆ fracs()

virtual std::vector< Quantity > & Phase::Mass::fracs ( void )

virtual

return reference to the fractions for all components in the default flow base

Reimplemented in Phase::MassMolar.

◆ GENERATE_COPY_MOVE_BASE()

Phase::Mass::GENERATE_COPY_MOVE_BASE ( Mass )

◆ isPure()

virtual bool Phase::Mass::isPure ( void )

virtual

returns true if the phase composition is pure in one component

Note: tests on w

Reimplemented in Phase::MassMolar.

◆ objectiveFunction()

ObjectiveNleAd * Phase::Mass::objectiveFunction ( void )

overridevirtual

returns a pointer to the model's objective function

Implements Model.

◆ operator*=()

virtual Mass & Phase::Mass::operator*= ( const Value & factor )

virtual

scales the phase flows by factor

Reimplemented in Phase::MassMolar, and Phase::MassMolarProperties.

◆ operator+=()

virtual Mass & Phase::Mass::operator+= ( const Mass & rhs )

virtual

mixes *this with the phase rhs

Reimplemented in Phase::MassMolar, and Phase::MassMolarProperties.

◆ operator-=()

virtual Mass & Phase::Mass::operator-= ( const Mass & rhs )

virtual

subtracts rhs from *this

Reimplemented in Phase::MassMolar, and Phase::MassMolarProperties.

◆ phaseIndex()

Libpf::Utility::PhaseIndex Phase::Mass::phaseIndex ( void ) const

Returns the phase index.

◆ phaseType()

Libpf::Utility::PhaseType Phase::Mass::phaseType ( void ) const

Returns the phase type.

◆ QUANTITY() [1/2]

Phase::Mass::QUANTITY	(	fraction	,
		"phase fraction"	,
		one	,
		""
	)

◆ QUANTITY() [2/2]

Phase::Mass::QUANTITY	(	mdot	,
		"mass flow"	,
		10000.	0,
		"kg/h"
	)

◆ representation()

virtual Libpf::Utility::MassBalanceMode Phase::Mass::representation ( void ) const

inlinevirtual

return default flow base

Reimplemented in Phase::MassMolar.

◆ setAsymmetrical()

void Phase::Mass::setAsymmetrical	(	const Libpf::Utility::MassBalanceMode &	mb,
		bool	increasing,
		double	eps
	)

sets phase composition to an asymmetrical distribution, based on the supplied mass balance mode;

setAsymmetrical(MassBalanceMode::Mw, true, 1E-5)
will give w = [1E-5, 0.03832, 0.14745, 0.31078, 0.50344]]
setAsymmetrical(MassBalanceMode::Mw, false, 1E-5)
will give w = [0.50344, 0.31078, 0.14745, 0.03832, 1E-5]]

Parameters

	mb	mass balance mode, only Mw is supported
[in]	increasing	if true, the distribution will be increasing, if false it will be decreasing
[in]	eps	no component will be present in an amount less than eps

Exceptions

if	the MassBalanceMode is unsupported

Note: does not recalculate the phase; only molar or mass fractions are supported

◆ setEquimass()

virtual void Phase::Mass::setEquimass ( const Libpf::Utility::MassBalanceMode & mb )

virtual

sets equimass composition, based on the supplied mass balance mode

Parameters

mb	mass balance mode, one of: Mw total mass flow and mass composition of each component are fixed M mass flow of each component

Exceptions

if	the MassBalanceMode is unsupported

Note: does not recalculate the phase

Reimplemented in Phase::MassMolar.

◆ setEquimassNoKey()

virtual void Phase::Mass::setEquimassNoKey	(	const Libpf::Utility::MassBalanceMode &	mb,
		int	i
	)

virtual

sets equimass composition except for component i, based on the supplied mass balance mode

Parameters

mb	mass balance mode, one of: Mw total mass flow and mass composition of each component are fixed M mass flow of each component of the mostly present component
i	component index of the absent component

Exceptions

if	the MassBalanceMode is unsupported

Note: does not recalculate the phase

Reimplemented in Phase::MassMolar.

◆ setEquimolar()

virtual void Phase::Mass::setEquimolar ( const Libpf::Utility::MassBalanceMode & mb )

virtual

sets equimolar composition, based on the supplied mass balance mode

Parameters

mb	mass balance mode, one of: Mw total mass flow and mass composition of each component are fixed M mass flow of each component

Exceptions

if	the MassBalanceMode is unsupported

Note: does not recalculate the phase

Reimplemented in Phase::MassMolar.

◆ setEquimolarNoKey()

virtual void Phase::Mass::setEquimolarNoKey	(	const Libpf::Utility::MassBalanceMode &	mb,
		int	i
	)

virtual

sets equimolar composition except for component i, based on the supplied mass balance mode

Parameters

mb	mass balance mode, one of: Mw total mass flow and mass composition of each component are fixed M mass flow of each component of the mostly present component
i	component index of the absent component

Exceptions

if	the MassBalanceMode is unsupported

Note: does not recalculate the phase

Reimplemented in Phase::MassMolar.

◆ setImpure()

virtual void Phase::Mass::setImpure	(	const Libpf::Utility::MassBalanceMode &	mb,
		int	i,
		double	eps
	)

virtual

sets phase composition to almost pure, based on the supplied mass balance mode

Parameters

mb	mass balance mode, one of: Mw total mass flow and mass composition of each component are fixed M mass flow of each component
i	component index of the present component
eps	mass fraction of the other components

Exceptions

if	the MassBalanceMode is unsupported

Note: does not recalculate the phase

Reimplemented in Phase::MassMolar.

◆ setPhaseIndex()

void Phase::Mass::setPhaseIndex	(	Libpf::Utility::PhaseIndex	pi,
		int	ordinal = `0`
	)

Set the PhaseIndex pi plus ordinal.

◆ setPhaseType()

virtual void Phase::Mass::setPhaseType ( Libpf::Utility::PhaseType pt )

virtual

Set the phase type to pt (Vapor, Liquid, Solid)

Reimplemented in Phase::Generic.

◆ setPure()

virtual void Phase::Mass::setPure	(	const Libpf::Utility::MassBalanceMode &	mb,
		int	i
	)

virtual

sets phase composition to pure in component i, based on the supplied mass balance mode

Parameters

mb	mass balance mode, one of: Mw total mass flow and mass composition of each component are fixed M mass flow of each component
i	component index

Exceptions

if	the MassBalanceMode is unsupported

Note: does not recalculate the phase

Reimplemented in Phase::MassMolar.

◆ setSymmetrical()

void Phase::Mass::setSymmetrical	(	const Libpf::Utility::MassBalanceMode &	mb,
		double	eps
	)

sets phase composition to a symmetrical distribution, based on the supplied mass balance mode;

setSymmetrical(MassBalanceMode::Mw, 1E-5)

will give w = [1E-5, 0.29289, 0.41421, 0.29289, 1E-5]

Phase::Mass::setSymmetrical

void setSymmetrical(const Libpf::Utility::MassBalanceMode &mb, double eps)

sets phase composition to a symmetrical distribution, based on the supplied mass balance mode;

Parameters

	mb	mass balance mode, only Mw is supported
[in]	eps	no component will be present in an amount less than eps

Exceptions

if	the MassBalanceMode is unsupported

Note: does not recalculate the phase; only molar or mass fractions are supported

◆ setup()

void Phase::Mass::setup ( void )

overridevirtual

performs initializations required immediately before solution

Implements Model.

◆ subtractComponents()

Mass & Phase::Mass::subtractComponents	(	const Mass &	rhs,
		int	istart,
		int	iend
	)

Parameters

rhs	phase whose component molar flows are subtracted from the molar flows of *this
istart	start index of the subset of components to subtract
iend	end index of the subset of components to subtract

◆ totalFlow()

virtual Value & Phase::Mass::totalFlow ( void )

virtual

return total flow in the default flow base

Reimplemented in Phase::MassMolar.

Member Data Documentation

◆ mdotcomps

std::vector<Quantity> Phase::Mass::mdotcomps

Mass flow of each component.

◆ w

std::vector<Quantity> Phase::Mass::w

Mass fraction.

The documentation for this class was generated from the following file:

Mass.h

Public Member Functions

Public Attributes

Protected Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Mass()

Member Function Documentation

◆ addComponents()

◆ addVariables()

◆ calculate()

◆ calculateM_()

◆ calculateMw_()

◆ calculateProperties()

◆ calculateX()

◆ category()

◆ clearComposition()

◆ flow() [1/2]

◆ flow() [2/2]

◆ frac()

◆ fracs()

◆ GENERATE_COPY_MOVE_BASE()

◆ isPure()

◆ objectiveFunction()

◆ operator*=()

◆ operator+=()

◆ operator-=()

◆ phaseIndex()

◆ phaseType()

◆ QUANTITY() [1/2]

◆ QUANTITY() [2/2]

◆ representation()

◆ setAsymmetrical()

◆ setEquimass()

◆ setEquimassNoKey()

◆ setEquimolar()

◆ setEquimolarNoKey()

◆ setImpure()

◆ setPhaseIndex()

◆ setPhaseType()

◆ setPure()

◆ setSymmetrical()

◆ setup()

◆ subtractComponents()

◆ totalFlow()

Member Data Documentation

◆ mdotcomps

◆ w
