a simple mass-balance only {vapor, liquid, solid} phase Options: More...

#include <PhaseSimple.h>

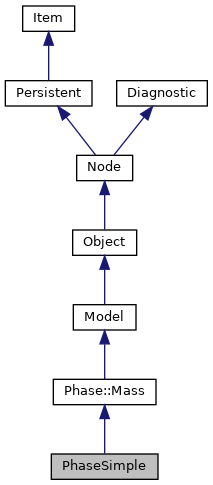

Inheritance diagram for PhaseSimple:

Public Member Functions

 PhaseSimple (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency *persistency=nullptr, Persistent *parent=nullptr, Persistent *root=nullptr)

 GENERATE_COPY_MOVE (PhaseSimple)

 GENERATE_COPY_MOVE_DERIVED (PhaseSimple, Mass)

 ~PhaseSimple (void)

 STRING (typeP, "the phase type", "vapor")

const std::string & type (void) const override

void initializeNonPersistents (void) override
 estimates hidden, non-persistent unknowns from the current results More...

- Public Member Functions inherited from Phase::Mass
 Mass (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency *persistency=nullptr, Persistent *parent=nullptr, Persistent *root=nullptr)

 GENERATE_COPY_MOVE_BASE (Mass)

 QUANTITY (fraction, "phase fraction", one, "")

 QUANTITY (mdot, "mass flow", 10000.0, "kg/h")

virtual void setPhaseType (Libpf::Utility::PhaseType pt)
 Set the phase type to pt (Vapor, Liquid, Solid) More...

Libpf::Utility::PhaseType phaseType (void) const
 Returns the phase type. More...

void setPhaseIndex (Libpf::Utility::PhaseIndex pi, int ordinal=0)
 Set the PhaseIndex pi plus ordinal. More...

Libpf::Utility::PhaseIndex phaseIndex (void) const
 Returns the phase index. More...

virtual Libpf::Utility::MassBalanceMode representation (void) const
 return default flow base More...

virtual ValuetotalFlow (void)
 return total flow in the default flow base More...

virtual Valueflow (int i)
 return flow for component i in the default flow base More...

virtual const Valueflow (int i) const
 return flow for component i in the default flow base More...

virtual Valuefrac (int i)
 return fraction for component i in the default flow base More...

virtual std::vector< Quantity > & fracs (void)
 return reference to the fractions for all components in the default flow base More...

virtual void calculateProperties (const Value &Pres, const Value &Temp, bool writeH=true)

virtual void calculateX (const Libpf::Utility::MassBalanceMode &mb)

virtual void setEquimolar (const Libpf::Utility::MassBalanceMode &mb)
 sets equimolar composition, based on the supplied mass balance mode More...

virtual void setEquimass (const Libpf::Utility::MassBalanceMode &mb)
 sets equimass composition, based on the supplied mass balance mode More...

virtual void setPure (const Libpf::Utility::MassBalanceMode &mb, int i)
 sets phase composition to pure in component i, based on the supplied mass balance mode More...

virtual void setImpure (const Libpf::Utility::MassBalanceMode &mb, int i, double eps)
 sets phase composition to almost pure, based on the supplied mass balance mode More...

virtual void setEquimolarNoKey (const Libpf::Utility::MassBalanceMode &mb, int i)
 sets equimolar composition except for component i, based on the supplied mass balance mode More...

virtual void setEquimassNoKey (const Libpf::Utility::MassBalanceMode &mb, int i)
 sets equimass composition except for component i, based on the supplied mass balance mode More...

void setSymmetrical (const Libpf::Utility::MassBalanceMode &mb, double eps)
 sets phase composition to a symmetrical distribution, based on the supplied mass balance mode; More...

void setAsymmetrical (const Libpf::Utility::MassBalanceMode &mb, bool increasing, double eps)
 sets phase composition to an asymmetrical distribution, based on the supplied mass balance mode; More...

virtual bool isPure (void)

virtual void clearComposition (const Libpf::Utility::MassBalanceMode &mb)

virtual Massoperator+= (const Mass &rhs)
 mixes *this with the phase rhs More...

virtual Massoperator-= (const Mass &rhs)
 subtracts rhs from *this More...

virtual Massoperator*= (const Value &factor)
 scales the phase flows by factor More...

MassaddComponents (const Mass &rhs, int istart, int iend)

MasssubtractComponents (const Mass &rhs, int istart, int iend)

ObjectiveNleAdobjectiveFunction (void) override
 returns a pointer to the model's objective function More...

void calculate (int level=0) override

void setup (void) override
 performs initializations required immediately before solution More...

Libpf::Utility::Category category (void) const override
 return model Category More...

- Public Member Functions inherited from Model
 Model (Libpf::Persistency::Defaults defaults, uint32_t id, Persistency *persistency, Persistent *parent, Persistent *root)

 INTEGER (nCalculations, "Number of times the model has been calculated", 0)

 STRINGVECTOR (errors, "Errors from the last computation", 0, "")

 STRINGVECTOR (warnings, "Warnings from the last computation", 0, "")

bool isPristine (void) const

void unSetInput (void)
 wipes out all tags marked as inputs More...

void reportMessages (void)
 recursively collect status of all sub-objects and report to parent More...

void resetErrors (void)

void setWarning (std::string s)
 send new warning message to local queue More...

void setError (std::string s)
 send new error message to local queue More...

void reportWarning (std::string s)
 propagate warning message from sub-object to local queue More...

void reportError (std::string s)
 propagate error message from sub-object to local queue More...

void setCalculated (void)
 increments nCalculations counter and unsets pristinity More...

void setPristineRecursive (void)
 force next calculation to restart as if the model had never been calculated during this runtime session, also for all contained objects More...

void setPristine (void)
 force next calculation to restart as if the model had never been calculated during this runtime session More...

void setRunTime (double t)
 set the run time More...

virtual Libpf::Utility::Category category (void) const =0
 return model Category More...

virtual void calculate (int level=0)=0

virtual void setup (void)=0
 performs initializations required immediately before solution More...

virtual int maximumIterations (void)
 returns default maximum iterations for main computation; defaults to 200 More...

virtual void initializeNonPersistents (void)=0
 estimates hidden, non-persistent unknowns from the current results More...

virtual ObjectiveNleAdobjectiveFunction (void)=0
 returns a pointer to the model's objective function More...

std::ostream & print (std::ostream &os, bool strings, bool quantities, bool integers, bool recursive) const

std::ostream & printFull (std::ostream &) const
 print the model quantities, including derivative info, in text format to os More...

void printHtml (const char *dir) const

virtual void printSvg (const char *fileName, bool tiny, bool raster, int offset)

void printSvgAll (const char *dir, bool tiny, bool raster, int offset, std::vector< std::string > &list)
 Recursively output the model and all descendants in SVG format as separate id.SVG files in the directory dir. More...

virtual void printXml (const char *dir, Model *precedingSibling, Model *followingSibling) const

void printXmlToc (std::ofstream &toc, int indent) const

void printOds (std::ofstream &ods) const

- Public Member Functions inherited from Object
 Object (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency *persistency=nullptr, Persistent *parent=nullptr, Persistent *root=nullptr)

Libpf::Persistency::Defaults defaults (void) const

std::ostream & printJson (std::ostream &os, int level=0) const override
 print Node in JSON format More...

void readVariables (Persistency *persistency) override
 reads Q, QV and QM from persistency More...

void readParameters (Persistency *persistency) override
 reads I, IV, S and SV from persistency More...

Nodeoperator= (const Node &) override
 copy assignment operator More...

Nodeoperator= (Node &&other) override
 move assignment More...

 ~Object (void)

const std::string & type (void) const override

Objectat (const std::string &fullRelativeTag)

const Objectat (const std::string &fullRelativeTag) const

Objectat (const std::string &fullRelativeTag, int index)

const ValueQ (const std::string &tag) const

const ValueQ (const std::string &tag, int index) const

const ValueQ (const std::string &tag, int row, int column) const

ValueQ (const std::string &tag)

ValueQ (const std::string &tag, int index)

ValueQ (const std::string &tag, int row, int column)

const ValueQ (const std::string &tag, std::string componentName) const

ValueQ (const std::string &tag, std::string componentName)

const ValueQ (const std::string &tag, int index, std::string componentName) const

ValueQ (const std::string &tag, int index, std::string componentName)

const int & I (const std::string &tag) const

const int & I (const std::string &tag, int index) const

int & I (const std::string &tag)

int & I (const std::string &tag, int index)

const std::string & S (const std::string &tag) const

const std::string & S (const std::string &tag, int index) const

std::string & S (const std::string &tag)

std::string & S (const std::string &tag, int index)

bool operator!= (const Object &rhs) const

bool operator== (const Object &rhs) const

bool compareParameters (const Object &rhs) const

bool existsI (const std::string &tag) const

bool existsS (const std::string &tag) const

bool existsQ (const std::string &tag) const

void push (void) const
 store the current status of the object and all its sub-objects in the last-in-first-out queue of real variables values More...

void pop (void)
 restore the status of the object and all its sub-objects from the last-in-first-out queue of real variables values More...

void clear (void) const
 clear the last-in-first-out queue of real variables values used for storing and retrieving the status More...

const RangeQuantities quantities (void)

const ConstRangeQuantities quantities (void) const

- Public Member Functions inherited from Node
 Node (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency *persistency=nullptr, Persistent *parent=nullptr, Persistent *root=nullptr)

 Node (const Node &other)
 copy constructor More...

 Node (Node &&other)
 move constructor More...

virtual std::unique_ptr< Nodeclone (void) const

virtual Nodeoperator= (const Node &other)
 copy assignment operator copies all elements but root which is set to nullptr More...

virtual Nodeoperator= (Node &&other)
 move assignment More...

 ~Node ()

int insert (Persistency *persistency) const override

int update (Persistency *persistency) const override

void restore (Persistency *persistency) override

void remove (Persistency *persistency) const override

uint32_t rootId (void) const override

uint32_t range (void) const override

uint32_t getId (void) override
 returns the next available id and increments the internal counter More...

const std::string & type (void) const override

virtual std::ostream & printJson (std::ostream &os, int level=0) const
 print Node in JSON format More...

NodeaddChild (std::string type, uint32_t id, Persistency *persistency)

NodeaddChild (std::string type, Libpf::Persistency::Defaults defaults)

NodeaddChild (const Node &child)

NodeaddChild (std::unique_ptr< Node > child)

std::unique_ptr< Nodeprune (const std::string &tag)

const Nodechild (const std::string &tag) const

Nodeat (const std::string &fullRelativeTag)

const Nodeat (const std::string &fullRelativeTag) const

uint32_t descendants (void) const

Persistentroot (void) const

void renameChild (const std::string &oldName, const std::string &newName)

bool existsChild (std::string tag) const

bool exists (uint32_t id)

Nodesearch (uint32_t id)

bool operator!= (const Node &rhs) const

bool operator== (const Node &rhs) const

virtual void readVariables (Persistency *)
 reads Q, QV and QM from persistency More...

virtual void readParameters (Persistency *)
 reads I, IV, S and SV from persistency More...

bool isRestored (void) const
 return whether the Node has just been retrieved from persistent storage More...

void setIcon (std::string icon, double width, double height)

bool hasIcon (void) const

std::string iconName (bool raster) const

double iconWidth (void) const

double iconHeight (void) const

const Range children (void)

const ConstRange children (void) const

- Public Member Functions inherited from Persistent
 Persistent (const std::string &tag, const std::string &description, Persistent *parent, uint32_t id)
 main constructor More...

 Persistent (const Persistent &)
 copy constructor More...

Persistentoperator= (const Persistent &)
 copy assignment More...

 Persistent (Persistent &&other)
 move constructor More...

Persistentoperator= (Persistent &&other)
 move assignment More...

 ~Persistent (void)

uint32_t id (void) const

std::string uuid (void) const

uint32_t parentId (void) const

virtual uint32_t rootId (void) const =0

virtual uint32_t range (void) const =0

virtual uint32_t getId (void)=0
 returns the next available id and increments the internal counter More...

double created_at (void) const

double updated_at (void) const

void updated_at (double u) const

virtual int insert (Persistency *persistency) const =0

virtual int update (Persistency *persistency) const =0

virtual void restore (Persistency *persistency)=0

virtual void remove (Persistency *persistency) const =0

- Public Member Functions inherited from Item
 Item (const Item &other)
 copy constructor copies all elements but parent which is set to nullptr More...

Itemoperator= (const Item &other)
 copy assignment operator copies all elements but parent which is set to nullptr More...

 Item (const std::string &tag, const std::string &description, Persistent *parent)

 Item (Item &&other)
 move constructor More...

Itemoperator= (Item &&other)
 move assignment operator More...

virtual ~Item ()

const std::string & tag () const

const std::string & description () const

std::string fullTag () const

const Persistentparent () const

virtual const std::string & type () const =0

void setTag (const std::string &tag)

void setDescription (const std::string &description)

void setWideTag (const std::wstring &tag)
 wide-character variant, More...

void setWideDescription (const std::wstring &description)
 wide-character variant, More...

bool operator!= (const Item &rhs) const

bool operator== (const Item &rhs) const

- Public Member Functions inherited from Diagnostic
 Diagnostic (void)

void setVerbosity (int verbosity)
 sets the verbosity level for this instance More...

int verbosity (void) const


Static Public Attributes

static const std::string type_


Additional Inherited Members

- Public Attributes inherited from Phase::Mass
std::vector< Quantityw
 Mass fraction. More...

std::vector< Quantitymdotcomps
 Mass flow of each component. More...

- Protected Member Functions inherited from Phase::Mass
void addVariables (void)

virtual void calculateMw_ (void)
 assumes the phase has mdot and w[] filled in More...

virtual void calculateM_ (void)
 assumes the phase has mdotcomps[] filled in More...

- Protected Member Functions inherited from Model
void printSvgXlink (std::ostream &svg, const std::string &link, double width, double height)

void addComponentVectorVariable (std::vector< Quantity > &variable, const std::string &tag, const std::string &description, Quantity::ValueType value)

template<typename T >
void addSubObjects (int verbosityFile, Libpf::Persistency::Defaults defaults, Persistency *persistency, int count, const std::string &optionKey, const std::string &typeKey, const std::string &tagKey, const std::string &description, std::vector< T * > &vector)

- Protected Member Functions inherited from Object
int retrieveInteger (const Libpf::Persistency::Defaults &defaults, uint32_t id, Persistency *persistency, std::string tag, int min, int max, int def=-1)

std::string retrieveString (const Libpf::Persistency::Defaults &defaults, uint32_t id, Persistency *persistency, std::string tag, const std::string def)

template<class T >
void addVariable (T &variable)

template<class T >
void addVectorVariable (std::vector< T > &variable, const std::string &tag, const std::string &description, uint32_t size, typename T::ValueType value)

 Object (const Object &other)
 copy constructor More...

 Object (Object &&other)
 move constructor More...

Objectoperator= (const Object &)
 copy assignment operator More...

Objectoperator= (Object &&other)
 move assignment operator More...

- Protected Member Functions inherited from Node
int offset (void) const

- Protected Member Functions inherited from Diagnostic
virtual ~Diagnostic ()=default

- Protected Attributes inherited from Object
std::map< std::string, Integer * > integers_
 collection of integer variables More...

std::map< std::string, IntegerVector * > integerVectors_
 collection of integer variable vectors More...

std::map< std::string, Quantity * > quantities_
 collection of real variables More...

std::map< std::string, QuantityVector * > quantityVectors_
 collection of real variable vectors More...

std::map< std::string, QuantityMatrix * > quantityMatrices_
 collection of real variable matrices More...

std::map< std::string, String * > strings_
 collection of string variables More...

std::map< std::string, StringVector * > stringVectors_
 collection of string variable vectors More...

- Protected Attributes inherited from Node
std::map< std::string, std::unique_ptr< Node > > children_
 the collection of direct descendants More...

- Protected Attributes inherited from Item
Persistentparent_
 pointer to the parent Persistent; set to this by the constructor if Item is self-standing or a root Persistent of a tree More...

- Protected Attributes inherited from Diagnostic
int verbosityInstance


Detailed Description

a simple mass-balance only {vapor, liquid, solid} phase Options:

Remarks
Warning
Requires the list of components to be populated before the construction
Thread safe:
Extendable:
Platform dependencies:

Constructor & Destructor Documentation

◆ PhaseSimple()

PhaseSimple::PhaseSimple ( Libpf::Persistency::Defaults  defaults,
uint32_t  id = 0,
Persistency persistency = nullptr,
Persistent parent = nullptr,
Persistent root = nullptr
)

◆ ~PhaseSimple()

PhaseSimple::~PhaseSimple ( void  )
inline

Member Function Documentation

◆ GENERATE_COPY_MOVE()

PhaseSimple::GENERATE_COPY_MOVE ( PhaseSimple  )

◆ GENERATE_COPY_MOVE_DERIVED()

PhaseSimple::GENERATE_COPY_MOVE_DERIVED ( PhaseSimple  ,
Mass
)

◆ initializeNonPersistents()

void PhaseSimple::initializeNonPersistents ( void  )
overridevirtual

estimates hidden, non-persistent unknowns from the current results

Implements Model.

◆ STRING()

PhaseSimple::STRING ( typeP  ,
"the phase type ,
"vapor"
)

◆ type()

const std::string & PhaseSimple::type ( void  ) const
inlineoverridevirtual
Returns
the C++ name of the class the instance belongs to
Note
it is the responsibility of the caller to not access this reference after the lifecycle of the Item

Reimplemented from Object.

Member Data Documentation

◆ type_

const std::string PhaseSimple::type_
static

The documentation for this class was generated from the following file:
