RatingHeatShellAndTubeRecovery Class Reference
Model to represent a Shell and Tube heat heat recovery fluid one (process, cold): tube side fluid two (process, hot): shell side. More...
#include <RatingHeatShellAndTubeRecovery.h>

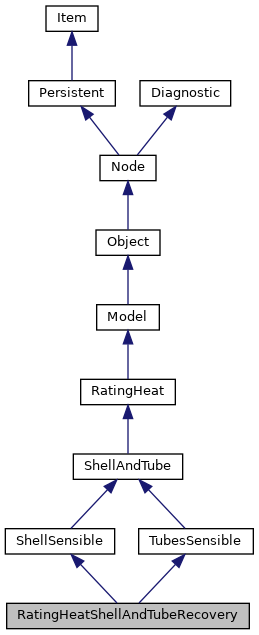

Inheritance diagram for RatingHeatShellAndTubeRecovery:
Public Member Functions | |
| RatingHeatShellAndTubeRecovery (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency *persistency=nullptr, Persistent *parent=nullptr, Persistent *root=nullptr) | |
| void | preCalculate (void) override |
| has no effect; to be overridden by derived classes that calculate U and Ft More... | |
| void | setup (void) override |
| performs initializations required immediately before solution More... | |
| const std::string & | type (void) const override |
 Public Member Functions inherited from ShellSensible | |
| QUANTITY (Re_2, "Reynolds number at the shell side", 1.0, "") | |
| QUANTITY (Pr_2, "Prandtl number at the shell side", 1.0, "") | |
| QUANTITY (Pr_w2, "Prandtl number at the shell side wall conditions", 1.0, "") | |
| QUANTITY (Nu_2, "Nusselt number at the shell side", 1.0, "") | |
| QUANTITY (deltaP_2, "Shell-side pressure drop", 0.0, "Pa") | |
| ShellSensible (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency *persistency=nullptr, Persistent *parent=nullptr, Persistent *root=nullptr) | |
| void | setup (void) override |
| performs initializations required immediately before solution More... | |
| void | preCalculate (void) override |
| has no effect; to be overridden by derived classes that calculate U and Ft More... | |
| Public Member Functions inherited from ShellAndTube | |
| QUANTITY (N, "Number of tubes", 1.0, "") | |
| QUANTITY (m, "Number of passes", 1.0, "") | |
| QUANTITY (L, "Length of tubes", 1.0, "m") | |
| QUANTITY (de, "Tube external diameter", 25.0, "mm") | |
| QUANTITY (s, "Tube thickness", 2.0, "mm") | |
| QUANTITY (R1f, "Process side fouling thermal resistance", 0.0, "m2*K/W") | |
| QUANTITY (R2f, "Utility side fouling thermal resistance", 0.0, "m2*K/W") | |
| QUANTITY (U1, "Process side heat transfer coefficient", 300.0, "W/(m2*K)") | |
| QUANTITY (U2, "Utility side heat transfer coefficient", 1000.0, "W/(m2*K)") | |
| QUANTITY (h, "Elevation positive for ascending", 0.0, "m") | |
| QUANTITY (eps, "Rugosity", 0.0457, "mm") | |
| QUANTITY (D, "Shell inner diameter", 1.0, "m") | |
| QUANTITY (b, "Number of segmental baffles", 0.0, "") | |
| QUANTITY (c, "Fractional baffle cut", 0.0, "") | |
| QUANTITY (ns, "Number of sealing strips pairs", 0.0, "") | |
| QUANTITY (d1, "Inner diameter of inlet nozzle", 0.1, "m") | |
| QUANTITY (d2, "Inner diameter of outlet nozzle", 0.1, "m") | |
| QUANTITY (di, "Tube internal diameter", 21.0, "mm") | |
| QUANTITY (At, "Tubes total cross-section available for fluid flow", 1.0, "m2") | |
| QUANTITY (km, "Thermal conductivity of the exchanger material", 1.0, "W/(m*K)") | |
| QUANTITY (Rm, "Heat transfer resistance of the exchanger material", 1.0, "m2*K/W") | |
| QUANTITY (theta, "Angle positive for ascending", 0.0, "") | |
| QUANTITY (ed, "Adimensional rugosity", 1E-6, "") | |
| ShellAndTube (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency *persistency=nullptr, Persistent *parent=nullptr, Persistent *root=nullptr) | |
| void | calculateGeometry (void) |
| void | preCalculate (void) override |
| has no effect; to be overridden by derived classes that calculate U and Ft More... | |
| void | setup (void) override |
| performs initializations required immediately before solution More... | |
| const std::string & | type (void) const override |
| const Stream * | in1 (void) const |
| const Stream * | out1 (void) const |
| const Stream * | in2 (void) const |
| const Stream * | out2 (void) const |
| Public Member Functions inherited from RatingHeat | |
| QUANTITY (U, "Overall heat transfer coefficient", 100.0, "W/(m2*K)") | |
| QUANTITY (Ft, "MTD correction factor", 1.0, "") | |
| QUANTITY (A, "Available heat transfer area", 10.0, "m2") | |
| QUANTITY (Areq, "Required heat transfer area", 10.0, "m2") | |
| QUANTITY (excessArea, "Ratio between available and required heat transfer area", 1.0, "") | |
| RatingHeat (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency *persistency=nullptr, Persistent *parent=nullptr, Persistent *root=nullptr) | |
| ~RatingHeat (void) | |
| virtual void | preCalculate (void) |
| has no effect; to be overridden by derived classes that calculate U and Ft More... | |
| void | rate (const Quantity &duty, const Quantity &MTD) |
| call preCalculate first More... | |
| void | calculate (int level=0) override |
| call rate first More... | |
| const std::string & | type (void) const override |
| void | setup (void) override |
| performs initializations required immediately before solution More... | |
| ObjectiveNleAd * | objectiveFunction (void) override |
| returns a pointer to the model's objective function More... | |
| void | initializeNonPersistents (void) override |
| estimates hidden, non-persistent unknowns from the current results More... | |
| Libpf::Utility::Category | category (void) const override |
| return model Category More... | |
| Public Member Functions inherited from Model | |
| Model (Libpf::Persistency::Defaults defaults, uint32_t id, Persistency *persistency, Persistent *parent, Persistent *root) | |
| INTEGER (nCalculations, "Number of times the model has been calculated", 0) | |
| STRINGVECTOR (errors, "Errors from the last computation", 0, "") | |
| STRINGVECTOR (warnings, "Warnings from the last computation", 0, "") | |
| bool | isPristine (void) const |
| void | unSetInput (void) |
| wipes out all tags marked as inputs More... | |
| void | reportMessages (void) |
| recursively collect status of all sub-objects and report to parent More... | |
| void | resetErrors (void) |
| void | setWarning (std::string s) |
| send new warning message to local queue More... | |
| void | setError (std::string s) |
| send new error message to local queue More... | |
| void | reportWarning (std::string s) |
| propagate warning message from sub-object to local queue More... | |
| void | reportError (std::string s) |
| propagate error message from sub-object to local queue More... | |
| void | setCalculated (void) |
| increments nCalculations counter and unsets pristinity More... | |
| void | setPristineRecursive (void) |
| force next calculation to restart as if the model had never been calculated during this runtime session, also for all contained objects More... | |
| void | setPristine (void) |
| force next calculation to restart as if the model had never been calculated during this runtime session More... | |
| void | setRunTime (double t) |
| set the run time More... | |
| virtual Libpf::Utility::Category | category (void) const =0 |
| return model Category More... | |
| virtual void | calculate (int level=0)=0 |
| virtual void | setup (void)=0 |
| performs initializations required immediately before solution More... | |
| virtual int | maximumIterations (void) |
| returns default maximum iterations for main computation; defaults to 200 More... | |
| virtual void | initializeNonPersistents (void)=0 |
| estimates hidden, non-persistent unknowns from the current results More... | |
| virtual ObjectiveNleAd * | objectiveFunction (void)=0 |
| returns a pointer to the model's objective function More... | |
| std::ostream & | print (std::ostream &os, bool strings, bool quantities, bool integers, bool recursive) const |
| std::ostream & | printFull (std::ostream &) const |
| print the model quantities, including derivative info, in text format to os More... | |
| void | printHtml (const char *dir) const |
| virtual void | printSvg (const char *fileName, bool tiny, bool raster, int offset) |
| void | printSvgAll (const char *dir, bool tiny, bool raster, int offset, std::vector< std::string > &list) |
| Recursively output the model and all descendants in SVG format as separate id.SVG files in the directory dir. More... | |
| virtual void | printXml (const char *dir, Model *precedingSibling, Model *followingSibling) const |
| void | printXmlToc (std::ofstream &toc, int indent) const |
| void | printOds (std::ofstream &ods) const |
| Public Member Functions inherited from Object | |
| Object (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency *persistency=nullptr, Persistent *parent=nullptr, Persistent *root=nullptr) | |
| Libpf::Persistency::Defaults | defaults (void) const |
| std::ostream & | printJson (std::ostream &os, int level=0) const override |
| print Node in JSON format More... | |
| void | readVariables (Persistency *persistency) override |
| reads Q, QV and QM from persistency More... | |
| void | readParameters (Persistency *persistency) override |
| reads I, IV, S and SV from persistency More... | |
| Node & | operator= (const Node &) override |
| copy assignment operator More... | |
| Node & | operator= (Node &&other) override |
| move assignment More... | |
| ~Object (void) | |
| const std::string & | type (void) const override |
| Object & | at (const std::string &fullRelativeTag) |
| const Object & | at (const std::string &fullRelativeTag) const |
| Object & | at (const std::string &fullRelativeTag, int index) |
| const Value & | Q (const std::string &tag) const |
| const Value & | Q (const std::string &tag, int index) const |
| const Value & | Q (const std::string &tag, int row, int column) const |
| Value & | Q (const std::string &tag) |
| Value & | Q (const std::string &tag, int index) |
| Value & | Q (const std::string &tag, int row, int column) |
| const Value & | Q (const std::string &tag, std::string componentName) const |
| Value & | Q (const std::string &tag, std::string componentName) |
| const Value & | Q (const std::string &tag, int index, std::string componentName) const |
| Value & | Q (const std::string &tag, int index, std::string componentName) |
| const int & | I (const std::string &tag) const |
| const int & | I (const std::string &tag, int index) const |
| int & | I (const std::string &tag) |
| int & | I (const std::string &tag, int index) |
| const std::string & | S (const std::string &tag) const |
| const std::string & | S (const std::string &tag, int index) const |
| std::string & | S (const std::string &tag) |
| std::string & | S (const std::string &tag, int index) |
| bool | operator!= (const Object &rhs) const |
| bool | operator== (const Object &rhs) const |
| bool | compareParameters (const Object &rhs) const |
| bool | existsI (const std::string &tag) const |
| bool | existsS (const std::string &tag) const |
| bool | existsQ (const std::string &tag) const |
| void | push (void) const |
| store the current status of the object and all its sub-objects in the last-in-first-out queue of real variables values More... | |
| void | pop (void) |
| restore the status of the object and all its sub-objects from the last-in-first-out queue of real variables values More... | |
| void | clear (void) const |
| clear the last-in-first-out queue of real variables values used for storing and retrieving the status More... | |
| const RangeQuantities | quantities (void) |
| const ConstRangeQuantities | quantities (void) const |
| Public Member Functions inherited from Node | |
| Node (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency *persistency=nullptr, Persistent *parent=nullptr, Persistent *root=nullptr) | |
| Node (const Node &other) | |
| copy constructor More... | |
| Node (Node &&other) | |
| move constructor More... | |
| virtual std::unique_ptr< Node > | clone (void) const |
| virtual Node & | operator= (const Node &other) |
| copy assignment operator copies all elements but root which is set to nullptr More... | |
| virtual Node & | operator= (Node &&other) |
| move assignment More... | |
| ~Node () | |
| int | insert (Persistency *persistency) const override |
| int | update (Persistency *persistency) const override |
| void | restore (Persistency *persistency) override |
| void | remove (Persistency *persistency) const override |
| uint32_t | rootId (void) const override |
| uint32_t | range (void) const override |
| uint32_t | getId (void) override |
| returns the next available id and increments the internal counter More... | |
| const std::string & | type (void) const override |
| virtual std::ostream & | printJson (std::ostream &os, int level=0) const |
| print Node in JSON format More... | |
| Node & | addChild (std::string type, uint32_t id, Persistency *persistency) |
| Node & | addChild (std::string type, Libpf::Persistency::Defaults defaults) |
| Node & | addChild (const Node &child) |
| Node & | addChild (std::unique_ptr< Node > child) |
| std::unique_ptr< Node > | prune (const std::string &tag) |
| const Node & | child (const std::string &tag) const |
| Node & | at (const std::string &fullRelativeTag) |
| const Node & | at (const std::string &fullRelativeTag) const |
| uint32_t | descendants (void) const |
| Persistent * | root (void) const |
| void | renameChild (const std::string &oldName, const std::string &newName) |
| bool | existsChild (std::string tag) const |
| bool | exists (uint32_t id) |
| Node & | search (uint32_t id) |
| bool | operator!= (const Node &rhs) const |
| bool | operator== (const Node &rhs) const |
| virtual void | readVariables (Persistency *) |
| reads Q, QV and QM from persistency More... | |
| virtual void | readParameters (Persistency *) |
| reads I, IV, S and SV from persistency More... | |
| bool | isRestored (void) const |
| return whether the Node has just been retrieved from persistent storage More... | |
| void | setIcon (std::string icon, double width, double height) |
| bool | hasIcon (void) const |
| std::string | iconName (bool raster) const |
| double | iconWidth (void) const |
| double | iconHeight (void) const |
| const Range | children (void) |
| const ConstRange | children (void) const |
| Public Member Functions inherited from Persistent | |
| Persistent (const std::string &tag, const std::string &description, Persistent *parent, uint32_t id) | |
| main constructor More... | |
| Persistent (const Persistent &) | |
| copy constructor More... | |
| Persistent & | operator= (const Persistent &) |
| copy assignment More... | |
| Persistent (Persistent &&other) | |
| move constructor More... | |
| Persistent & | operator= (Persistent &&other) |
| move assignment More... | |
| ~Persistent (void) | |
| uint32_t | id (void) const |
| std::string | uuid (void) const |
| uint32_t | parentId (void) const |
| virtual uint32_t | rootId (void) const =0 |
| virtual uint32_t | range (void) const =0 |
| virtual uint32_t | getId (void)=0 |
| returns the next available id and increments the internal counter More... | |
| double | created_at (void) const |
| double | updated_at (void) const |
| void | updated_at (double u) const |
| virtual int | insert (Persistency *persistency) const =0 |
| virtual int | update (Persistency *persistency) const =0 |
| virtual void | restore (Persistency *persistency)=0 |
| virtual void | remove (Persistency *persistency) const =0 |
| Public Member Functions inherited from Item | |
| Item (const Item &other) | |
| copy constructor copies all elements but parent which is set to nullptr More... | |
| Item & | operator= (const Item &other) |
| copy assignment operator copies all elements but parent which is set to nullptr More... | |
| Item (const std::string &tag, const std::string &description, Persistent *parent) | |
| Item (Item &&other) | |
| move constructor More... | |
| Item & | operator= (Item &&other) |
| move assignment operator More... | |
| virtual | ~Item () |
| const std::string & | tag () const |
| const std::string & | description () const |
| std::string | fullTag () const |
| const Persistent * | parent () const |
| virtual const std::string & | type () const =0 |
| void | setTag (const std::string &tag) |
| void | setDescription (const std::string &description) |
| void | setWideTag (const std::wstring &tag) |
| wide-character variant, More... | |
| void | setWideDescription (const std::wstring &description) |
| wide-character variant, More... | |
| bool | operator!= (const Item &rhs) const |
| bool | operator== (const Item &rhs) const |
| Public Member Functions inherited from Diagnostic | |
| Diagnostic (void) | |
| void | setVerbosity (int verbosity) |
| sets the verbosity level for this instance More... | |
| int | verbosity (void) const |
| Public Member Functions inherited from TubesSensible | |
| QUANTITY (Re_1, "Reynolds number", 1.0, "") | |
| QUANTITY (Pr_1, "Prandlt number", 1.0, "") | |
| QUANTITY (f, "friction factor", 1.0, "") | |
| QUANTITY (Nu_1, "Nusselt number", 1.0, "") | |
| QUANTITY (v_1, "Superficial velocity", 1.0, "m/s") | |
| QUANTITY (deltaP_A1, "Acceleration pressure drop", 1.0, "Pa") | |
| QUANTITY (deltaP_G1, "Gravitational pressure drop", 1.0, "Pa") | |
| QUANTITY (deltaP_F1, "Frictional pressure drop", 1.0, "Pa") | |
| QUANTITY (deltaP_1, "Total pressure drop", 1.0, "Pa") | |
| QUANTITY (rho1, "Density", 1.0, "kg/m3") | |
| STRING (correlation, "Heat transfer correlation", "PetukhovKirilov") | |
| heat transfer correlation, one of: PetukhovKirilov, DittusBoelter or SiederTate More... | |
| TubesSensible (Libpf::Persistency::Defaults defaults, uint32_t id=0, Persistency *persistency=nullptr, Persistent *parent=nullptr, Persistent *root=nullptr) | |
| void | setup (void) override |
| performs initializations required immediately before solution More... | |
| void | preCalculate (void) override |
| has no effect; to be overridden by derived classes that calculate U and Ft More... | |
Static Public Attributes | |
| static const std::string | type_ |
| Static Public Attributes inherited from ShellAndTube | |
| static const std::string | type_ |
| Static Public Attributes inherited from RatingHeat | |
| static const std::string | type_ |
Additional Inherited Members | |
| Protected Member Functions inherited from Model | |
| void | printSvgXlink (std::ostream &svg, const std::string &link, double width, double height) |
| void | addComponentVectorVariable (std::vector< Quantity > &variable, const std::string &tag, const std::string &description, Quantity::ValueType value) |
| template<typename T > | |
| void | addSubObjects (int verbosityFile, Libpf::Persistency::Defaults defaults, Persistency *persistency, int count, const std::string &optionKey, const std::string &typeKey, const std::string &tagKey, const std::string &description, std::vector< T * > &vector) |
| Protected Member Functions inherited from Object | |
| int | retrieveInteger (const Libpf::Persistency::Defaults &defaults, uint32_t id, Persistency *persistency, std::string tag, int min, int max, int def=-1) |
| std::string | retrieveString (const Libpf::Persistency::Defaults &defaults, uint32_t id, Persistency *persistency, std::string tag, const std::string def) |
| template<class T > | |
| void | addVariable (T &variable) |
| template<class T > | |
| void | addVectorVariable (std::vector< T > &variable, const std::string &tag, const std::string &description, uint32_t size, typename T::ValueType value) |
| Object (const Object &other) | |
| copy constructor More... | |
| Object (Object &&other) | |
| move constructor More... | |
| Object & | operator= (const Object &) |
| copy assignment operator More... | |
| Object & | operator= (Object &&other) |
| move assignment operator More... | |
| Protected Member Functions inherited from Node | |
| int | offset (void) const |
| Protected Member Functions inherited from Diagnostic | |
| virtual | ~Diagnostic ()=default |
| Protected Attributes inherited from Object | |
| std::map< std::string, Integer * > | integers_ |
| collection of integer variables More... | |
| std::map< std::string, IntegerVector * > | integerVectors_ |
| collection of integer variable vectors More... | |
| std::map< std::string, Quantity * > | quantities_ |
| collection of real variables More... | |
| std::map< std::string, QuantityVector * > | quantityVectors_ |
| collection of real variable vectors More... | |
| std::map< std::string, QuantityMatrix * > | quantityMatrices_ |
| collection of real variable matrices More... | |
| std::map< std::string, String * > | strings_ |
| collection of string variables More... | |
| std::map< std::string, StringVector * > | stringVectors_ |
| collection of string variable vectors More... | |
| Protected Attributes inherited from Node | |
| std::map< std::string, std::unique_ptr< Node > > | children_ |
| the collection of direct descendants More... | |
| Protected Attributes inherited from Item | |
| Persistent * | parent_ |
| pointer to the parent Persistent; set to this by the constructor if Item is self-standing or a root Persistent of a tree More... | |
| Protected Attributes inherited from Diagnostic | |
| int | verbosityInstance |
Detailed Description
Model to represent a Shell and Tube heat heat recovery fluid one (process, cold): tube side fluid two (process, hot): shell side.
#include <libpf/units/RatingHeatShellAndTubeRecovery.h>
- Remarks
- Warning
- Thread safe:
- Extendable:
- Platform dependencies:
Constructor & Destructor Documentation
◆ RatingHeatShellAndTubeRecovery()
| RatingHeatShellAndTubeRecovery::RatingHeatShellAndTubeRecovery | ( | Libpf::Persistency::Defaults | defaults, |
| uint32_t | id = 0, |
||
| Persistency * | persistency = nullptr, |
||
| Persistent * | parent = nullptr, |
||
| Persistent * | root = nullptr |
||
| ) |
Member Function Documentation
◆ preCalculate()
|
overridevirtual |
has no effect; to be overridden by derived classes that calculate U and Ft
Reimplemented from RatingHeat.
◆ setup()
|
overridevirtual |
performs initializations required immediately before solution
Reimplemented from RatingHeat.
◆ type()
|
inlineoverridevirtual |
- Returns
- the C++ name of the class the instance belongs to
- Note
- it is the responsibility of the caller to not access this reference after the lifecycle of the Item
Reimplemented from RatingHeat.
Member Data Documentation
◆ type_
|
static |
The documentation for this class was generated from the following file:
- © Copyright 2006-2023 simevo s.r.l. with some exceptions
- Generated on Mon Oct 16 2023 13:59:02 for LIBPF by
1.9.4
